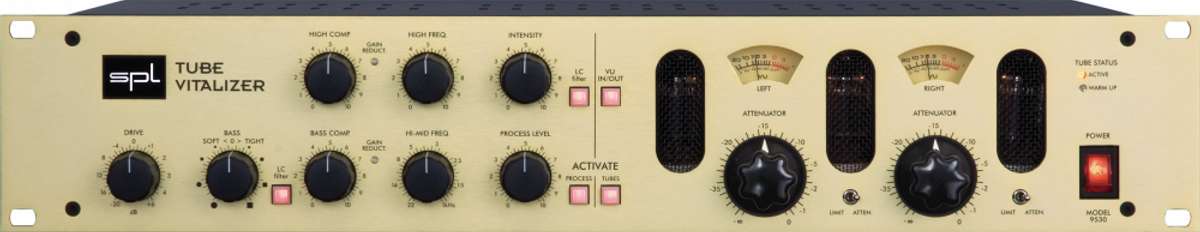

SPL Tube Vitalizer byr på en helt annen type EQ, med en nærmest viritous tilnærming til lydbildet. Ved miksing, mastering eller remastering vil SPL Tube Vitalizer overgå tradisjonell EQ.
Denne har tatt studiomarkedet med storm, og blitt en favoritt blant produsenter og lydteknikere verden rundt. Prøv en Tube Vitalizer og opplev forskjellen.
Spesifikasjoner:
Analog inputs & outputs; XLR & TRS Jack (balanced)
Maximum input gain
24 dBu
Input impedance
22 kO
Output impedance
600 O
Common mode rejection (1 kHz)
70 dB
Frequency range (-3 dB, tube section off)
10 Hz – 100 kHz
Frequency range (-3 dB, tube section on)
30 Hz – 100 kHz
THD + N (0 dBu, 10 Hz – 22 kHz)
0.002 %
Noise (A-weighted)
-89 dBu
Dynamic Range
113 dB
Internal Linear Power Supply with Toroidal Transformer
Operating voltage for analog audio
+/- 18 V
Operating voltage for relays and LEDs
+12 V
Mains Power Supply
Mains voltage (selectable)
230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V (primary)
T 500 mA
Fuse for 230 V (secondary)
T 315 mA
Fuse for 115 V (primary)
T 1 A
Fuse for 115 V (secondary)
T 630 mA
Power consumption
max. 40 W
Dimensions & Weight
W x H x T (Weite x Höhe x Tiefe)
482 x 88 x 237 mm
19 x 3.46 x 9.33 inch
Unit weight
4.9 kg
10.8 lbs
Shipping weight (incl. packaging)
7.5 kg
16.53 lbs
