EVE Audio SC Series


EVE Audio SC203 Set

SC203 Set Stereo Desktop Speaker Set The compact SC203 system grants a detailed sound reproduction for small workspaces Small speaker with a big sound The most important features at a glance 62 Hz - 21 kHz Frequency range 3" Woofer size 94 dB Max. SPL The SC203 When a small footprint – but a big sound! – is what you're looking for, the SC203 becomes one of those few examples where small also means powerful. It is the perfect solution for professional desktops with a limited amount of physical space, for discerning home and gaming users, and for mobile studios during travel. To further extend its flexibility, each speaker is provided with the FlexiPad, a rubberized pad that allows you to decouple the speaker from its base and angle it precisely at 0°, 7,5° or 15°. Accessories include our SC203 Mounting Adapter, which enables you to mount your speaker directly on any microphone or speaker stand that features a 3/8" thread. Combining it with our threaded wall mount adapter it is possible to place your speaker directly on a wall. By placing the FlexiPad between the speaker and the mounting adapter you are further decoupling unwanted resonances, and can even better arrange orientation for upright positioning. When using woofers in small desktop speakers, some special considerations have to be taken into account. To meet the demands of a precise reproduction in the low frequency region, we've developed a 3" woofer coupled with a 1" voice coil capable of handling a longer linear excursion. With a 16 mm-height voice coil, a linear, back and forth, swing of ±5mm is easily achieved. However, this requires an appropriate multilayer paper membrane material that is capable of withstanding such rigorous use while maintaining consistency. After numerous careful tests, coated paper turned out to be the very best solution in order to meet this demand for low resonance, stability and transmission linearity. From then on, the entire construction design met all the necessary requirements that such small woofers usually entail, including having a chassis basket permeable to air in order to minimize distortions. The large driver magnet works as a powerful "engine" so as to keep the woofer stable, even in border areas. A passive radiator – which you could simply think of as a passive speaker that moves through the force of air – located at the backside of the SC203, reinforces the reproduction of low frequencies and allows the speaker response to go down as low as an impressive 62Hz (-3dB) with very low distortion. Each SC203 setup is configured as a 2-way active-passive desktop speaker set, and features four power amplifiers. Each woofer and tweeter gets its own dedicated 30W PWM amplifier with separate filter section for precise control. And for optimal connectivity, the SC203 houses three inputs – analog RCA, digital optical and USB – which will allow you to conveniently connect a wide range of sources. Furthermore, a volume controlled subwoofer output lets you connect an additional subwoofer (TS107 und TS108) to the active speaker and create a powerful 2.1 system. A DIP switch located at the speaker's back panel allows you to select the SC203's to work as "satellites" from 80Hz and upwards, or as a full range units. More than just a speaker The sound enjoys the spotlight, but our monitors offer a holistic solution that is well thought out from A to Z SMART-knob Simply set and save filters & volume. Bass-reflex design For precise bass reproduction without background noise. Parameter lock Your settings are protected (even without power). Safe Fade-In A slow volume increase when switching on protects ears and equipment. The extra compact Air Motion Transformer The simple goal of bringing the sound quality, low distortion and high resolution of our now famous Air Motion Transformer tweeter to a much smaller format speaker took us on a many-month journey to find the perfect solution for the SC203. In the end, a new tweeter was born: the new µA.M.T. This high resolution µA.M.T. delivers an astonishing high frequency resolution combined with extraordinary precision and clarity. The folded membrane of this high resolution µA.M.T. is only 400mm² in surface area, about less than half as our RS1 tweeter (which is used, for example, in the SC204 speaker). An integrated waveguide helps create an optimal dispersion pattern over a wide frequency range. No fighting over your sweet spot with this tweeter! To complete the system, we've used strong neodymium magnets, coupled with a magnetic holder and membrane holder optimized for very low distortion values at the specified SPL. As usual with EVE Audio, no cutbacks were made to save money at the expense of a high quality tuned system. Non-detachable loudspeaker grilles protect both, woofer and µA.M.T. tweeter against damage. The Air Motion Transformer We reinvented our own version of the ribbon tweeter technology which our speakers are well known for.   Understanding the Air Motion Transformer The Air Motion Transformer (AMT) is a unique driver technology, distinct from other audio drivers. It utilizes a lightweight, hand-folded diaphragm that is thinly coated with aluminum. The current of the music signal flows through these conductive strands. The diaphragm is placed in a powerful magnetic field leading to movement in the folds caused by the Lorentz force. Due to the opposing direction of the current the walls of each single fold work against each other. The air between the folds is squeezed in and out at a ratio of 1:4, compared to the 1:1 ratio of a regular dome tweeter. This results in higher resolution and dynamics in the tweeter section, along with a very low distortion level, allowing superior sound quality with enhanced detail and clarity. The SMART-knob The print around the SMART-knobThe SMART-knob found on EVE Audio studio monitorsHighMidDeskLowLEDClick the filters! Powering On/Off: Standby Mode Press and hold the control three seconds in order to put the monitor in Standby mode. The volume will decrease gradually while the LED ring lights up once around the Volume control. Afterwards, the LED on the right end will remain dimly lit and the power consumption is reduced to 1 watt. Volume The volume can be adjusted by turning the knob. Depending on the LED mode selected, the volume will be displayed as a dim/ bright circle or as a dim/bright point. Mute To put the monitor in Mute Mode, turn the volume control counter clockwise until you reach the minimum level. When the LED on the left end lights up dimly the Mute Mode is activated. Settings Press the SMART-knob once to enter the Settings menu. Here you can set different filters as well as the LED ring’s behavior. The LED of the currently active function blinks. Click the different filters above to find out more about them! High Filter The High-Shelf Filter helps you adjust frequencies above 3kHz in 0.5dB increments. You may need it in the following situations: Distance from Speakers: High frequencies weaken as you move further from the speakers. If you sit far from the speakers, boost the high frequencies. If you're close, like in a desktop setup (about 1 meter or 3 feet away), you might need to reduce the high frequencies. Room Acoustics: In a room with few reflective surfaces ("dead room"), boosting high frequencies can create a more balanced sound. Conversely, in a room with many reflective surfaces, reducing the high frequencies is advisable. Adjust the High Filter accordingly and achieve the best sound quality based on your listening position. A dB/Hz graph showing the impact of the High Filter Mid Filter The Mid Filter is a bell filter centered at 1kHz. It allows you to boost or cut the midrange by up to +/-3dB in 0.5dB increments. Here's what you should consider: Frequency Balance: The midrange is crucial for balancing lower and higher mid frequencies. Use the Mid Filter to fine-tune the balance between the fundamental and harmonic frequencies in your music. Room Acoustics: The acoustics of your room can affect how midrange frequencies are perceived. Sound energy from the monitors may reflect off surfaces like walls, floors, and ceilings, altering the sound. Adjust the Mid Filter to compensate for these reflections and achieve a balanced sound. The Mid filter is available on SC2070, SC3070, SC4070, SC3010 and SC3012. A dB/Hz graph showing the impact of the Mid Filter Desk Filter The desk filter allows you to boost or cut you low-mid frequencies in 0.5dB increments: Narrow-Band EQ: Depending on the model the filter is centered between 160 and 200Hz. When turned down, it reduces the low-mid boost often caused by reflections from mixers and similar surfaces. Decrease the filter gain to lessen this effect. EQ at 80Hz: When turned up, it enhances the lower frequencies, giving more punch to the sound. A dB/Hz graph showing the impact of the Desk Filter Low Filter The Low-Shelf Filter allows you to boost or attenuate frequencies below 300Hz in 0.5dB steps. Here's when to use it: Attenuating Low Frequencies: If your room's acoustics cause a boost in low frequencies (due to room modes or speakers being close to walls), you can reduce them with the Low-Shelf Filter. Boosting Low Frequencies: If the low frequencies are too weak, you can enhance them to achieve a balanced frequency response. Adjust the Low-Shelf Filter accordingly to address any issues in the low frequency range caused by your room's acoustics. Technical Specs All facts and figures in detail Dimensions 116x190x134 4.6x7.5x5.3 inches (WxHxD) Frequency range 62 Hz - 21 kHz -3 dB at 1 m distance Sound pressure level 94 dB Max. SPL per pair Output power 60 W Output power per speaker Woofer size 3" Diameter Cross-over frequency 4800 Hz Cross-over between drivers General Tweeter µA.M.T. Output power tweeter 30 W Woofer 3" Output power woofer 30 W Protection limiter Yes Weight 1,9 kg (4.2 lb) Settings Volume - ∞ to + 6 dB High-shelf filter (-5 dB to +3 dB) > 3 kHz Position filter Flat / Desk / Console Low-shelf filter (-5 dB to +3 dB) < 300 Hz Adjustable LED brightness Yes Input select Analog / Optical / USB Satellite filter dip switch 80 Hz high-pass filter Input level dip switch +8 dBu / +22 dBu Connectors (10k impedance) RCA in Left / Right Digital optical in TOSLink USB in Type B RCA subwoofer out Power consumption Standby < 1 W Maximum 110 VA
EVE Audio SC305

SC305 Active 3-way nearfield studio monitor SC305 All advantages of a professional 3-way monitoring solution in a compact cabinet Authentic and well-balanced sound imaging The most important features at a glance 50 Hz - 21 kHz Frequency range 5" Woofer size 108 dB Max. SPL The SC305 The SC305 was carefully designed to be equally comfortable and precise in a stereo or surround set up and works perfectly as a center channel. This nearfield monitor combines the power from three different amplifiers to deliver a very efficient, dynamic and low noise sound reproduction. Our three-way systems are not only developed for critical and detailed listening but also to deliver power and thunderous bass. Even distribution of the frequencies Our three-way systems are designed around the concept to distribute the frequencies properly between all individual components and raise the efficiency of your speakers effectively. With the SC305 one of the woofers is delivering sound only up to 350 Hz, functioning as a kind of "bass woofer". The other woofer gives you a fuller range up to the 3000 Hz crossover frequency as a bass-midrange driver. This means less effective physical work being made by each individual woofer, which in turn will result in less mechanical inertia and a more efficient sound transmission. Both woofers consist of our proprietary 5" SilverCone, the same that is used in the smaller SC205 model and features our sophisticated low distortion copper cap magnet system. However, due to the fact that two of these woofers are being used simultaneously, you get a bigger frequency response - down to 50 Hz. More than just a speaker The sound enjoys the spotlight, but our monitors offer a holistic solution that is well thought out from A to Z SMART-knob Simply set and save filters & volume. Bass-reflex design For precise bass reproduction without background noise. Parameter lock Your settings are protected (even without power). Safe Fade-In A slow volume increase when switching on protects ears and equipment. A whole system The SC305 also makes use of the proprietary AMT RS3 tweeter, which uses a bigger front plate and a bigger internal magnet to drive the AMT tweeter with greater efficiency. The three 50 W PWM power amplifiers won't leave you lacking any power either. All in all, the SC305 will probably be regarded as the single most detailed three-way monitor speaker in the market for its specific size and price range. And no worries determining how to place the SC305 in your room or studio properly. Our DSP section will assist you in choosing the speaker for left and right hand side. So you will always get proper symmetry between your speakers, instead of having to move them around as usual. With a DIP switch, located on rear of the speakers these settings for room adaption can be temporarly locked. As with every other EVE Audio speaker, you get both balanced XLR inputs and unbalanced RCA inputs for greater convenience. The Air Motion Transformer We reinvented our own version of the ribbon tweeter technology which our speakers are well known for.   Understanding the Air Motion Transformer The Air Motion Transformer (AMT) is a unique driver technology, distinct from other audio drivers. It utilizes a lightweight, hand-folded diaphragm that is thinly coated with aluminum. The current of the music signal flows through these conductive strands. The diaphragm is placed in a powerful magnetic field leading to movement in the folds caused by the Lorentz force. Due to the opposing direction of the current the walls of each single fold work against each other. The air between the folds is squeezed in and out at a ratio of 1:4, compared to the 1:1 ratio of a regular dome tweeter. This results in higher resolution and dynamics in the tweeter section, along with a very low distortion level, allowing superior sound quality with enhanced detail and clarity. The SMART-knob The print around the SMART-knobThe SMART-knob found on EVE Audio studio monitorsHighMidDeskLowLEDClick the filters! Powering On/Off: Standby Mode Press and hold the control three seconds in order to put the monitor in Standby mode. The volume will decrease gradually while the LED ring lights up once around the Volume control. Afterwards, the LED on the right end will remain dimly lit and the power consumption is reduced to 1 watt. Volume The volume can be adjusted by turning the knob. Depending on the LED mode selected, the volume will be displayed as a dim/ bright circle or as a dim/bright point. Mute To put the monitor in Mute Mode, turn the volume control counter clockwise until you reach the minimum level. When the LED on the left end lights up dimly the Mute Mode is activated. Settings Press the SMART-knob once to enter the Settings menu. Here you can set different filters as well as the LED ring’s behavior. The LED of the currently active function blinks. Click the different filters above to find out more about them! High Filter The High-Shelf Filter helps you adjust frequencies above 3kHz in 0.5dB increments. You may need it in the following situations: Distance from Speakers: High frequencies weaken as you move further from the speakers. If you sit far from the speakers, boost the high frequencies. If you're close, like in a desktop setup (about 1 meter or 3 feet away), you might need to reduce the high frequencies. Room Acoustics: In a room with few reflective surfaces ("dead room"), boosting high frequencies can create a more balanced sound. Conversely, in a room with many reflective surfaces, reducing the high frequencies is advisable. Adjust the High Filter accordingly and achieve the best sound quality based on your listening position. A dB/Hz graph showing the impact of the High Filter Mid Filter The Mid Filter is a bell filter centered at 1kHz. It allows you to boost or cut the midrange by up to +/-3dB in 0.5dB increments. Here's what you should consider: Frequency Balance: The midrange is crucial for balancing lower and higher mid frequencies. Use the Mid Filter to fine-tune the balance between the fundamental and harmonic frequencies in your music. Room Acoustics: The acoustics of your room can affect how midrange frequencies are perceived. Sound energy from the monitors may reflect off surfaces like walls, floors, and ceilings, altering the sound. Adjust the Mid Filter to compensate for these reflections and achieve a balanced sound. The Mid filter is available on SC2070, SC3070, SC4070, SC3010 and SC3012. A dB/Hz graph showing the impact of the Mid Filter Desk Filter The desk filter allows you to boost or cut you low-mid frequencies in 0.5dB increments: Narrow-Band EQ: Depending on the model the filter is centered between 160 and 200Hz. When turned down, it reduces the low-mid boost often caused by reflections from mixers and similar surfaces. Decrease the filter gain to lessen this effect. EQ at 80Hz: When turned up, it enhances the lower frequencies, giving more punch to the sound. A dB/Hz graph showing the impact of the Desk Filter Low Filter The Low-Shelf Filter allows you to boost or attenuate frequencies below 300Hz in 0.5dB steps. Here's when to use it: Attenuating Low Frequencies: If your room's acoustics cause a boost in low frequencies (due to room modes or speakers being close to walls), you can reduce them with the Low-Shelf Filter. Boosting Low Frequencies: If the low frequencies are too weak, you can enhance them to achieve a balanced frequency response. Adjust the Low-Shelf Filter accordingly to address any issues in the low frequency range caused by your room's acoustics. A dB/Hz graph showing the impact of the Low Filter Technical Specs All facts and figures in detail Dimensions 425x180x250 16.7x7.1x9.8 inches (WxHxD) Frequency range 50 Hz - 21 kHz -3 dB at 1 m distance Sound pressure level 108 dB Max. SPL per pair Output power 150 W Output power per speaker Woofer size 5" Diameter Cross-over frequency 350 & 3000 Hz Cross-over between drivers General Tweeter AMT RS3 Output power tweeter 50 W Mid-driver 5" Output power mid-driver 50 W Woofer 5" Output power woofer 50 W Protection limiter Yes Weight 8,5 kg (18.7 lb) Settings Volume - ∞ to + 6 dB High-shelf filter (-5 dB to +3 dB) > 3 kHz Mid EQ (-3 dB to +3 dB) - Desk filter cut (-5 dB to 0 dB) 160 Hz Desk filter boost (0 dB to +3 dB) 80 Hz Low-shelf filter (-5 dB to +3 dB) < 300 Hz Adjustable LED brightness Yes Level-lock dip switch Yes Filter-lock dip switch Yes Connectors (10k impedance) RCA in XLR in Power consumption Standby < 1 W Maximum 110 VA
EVE Audio SC307

SC 307 Active 3-way midfield studio monitor SC307 Highly accurate sound reproduction and a true dynamic response 3-way precision The most important features at a glance The midfield monitor combines the power from three different amplifiers to deliver a very efficient, dynamic and low noise sound reproduction. Our three-way systems are developed for critical and detailed listening. Although they will be able to provide lots of power and thunderous bass frequencies, they will also excel if you're looking for a precise and very detailed pair of speakers. Efficient sound reproduction Our three-way systems are designed around the concept to distribute the frequencies properly between all individual components and raise the efficiency of your speakers effectively. In our three-way systems, each driver (woofers or tweeter) gets its own amplifier. One of the woofers serves frequencies up to 300 Hz as a kind of "bass" whilst the other woofer gives you a fuller range as a bass-midrange driver, up to the 3000 Hz crossover frequency. From that frequency on, our AMT tweeter takes over. This minimizes interference between the drivers and also allows the SC307 to deliver a very efficient and dynamic sound reproduction. What this design philosophy means is that less effective physical work is being made by each individual woofer, as the band of frequencies to be reproduced are divided between both woofers. This in turn will result in less mechanical inertia and a more efficient sound transmission. More than just a speaker The sound enjoys the spotlight, but our monitors offer a holistic solution that is well thought out from A to Z SMART-knob Simply set and save filters & volume. Bass-reflex design For precise bass reproduction without background noise. Parameter lock Your settings are protected (even without power). Safe Fade-In A slow volume increase when switching on protects ears and equipment. Both woofers consist of our proprietary 6.5" SilverCone, the same that is used in our two-way system, the SC207, and features our sophisticated low distortion copper cap magnet system. However, due to the fact that two of these woofers are being used simultaneously, you get a bigger frequency response down to 40 Hz. The SC307 also makes use of the proprietary AMT RS2 tweeter, which uses a bigger front plate, and a bigger internal magnet to drive the AMT tweeter with greater efficiency. The three 100 W PWM power amplifiers won't leave you lacking any power either, as the maximum sound pressure level of 114 dB (SPL @ 1m) will attest. And no worries determining how to place the SC307 in your room or studio properly. Our DSP section will assist you in choosing the speaker for left and right hand side. So you will always get proper symmetry between your speakers, instead of having to move them around as usually. With a DIP switch located, on the rear of speakers these settings for room adaption can be temporarily locked. As with every other EVE Audio speaker, you get both balanced XLR inputs and unbalanced RCA inputs for greater convenience. The Air Motion Transformer We reinvented our own version of the ribbon tweeter technology which our speakers are well known for.   Understanding the Air Motion Transformer The Air Motion Transformer (AMT) is a unique driver technology, distinct from other audio drivers. It utilizes a lightweight, hand-folded diaphragm that is thinly coated with aluminum. The current of the music signal flows through these conductive strands. The diaphragm is placed in a powerful magnetic field leading to movement in the folds caused by the Lorentz force. Due to the opposing direction of the current the walls of each single fold work against each other. The air between the folds is squeezed in and out at a ratio of 1:4, compared to the 1:1 ratio of a regular dome tweeter. This results in higher resolution and dynamics in the tweeter section, along with a very low distortion level, allowing superior sound quality with enhanced detail and clarity. The SMART-knob The print around the SMART-knobThe SMART-knob found on EVE Audio studio monitorsHighMidDeskLowLEDClick the filters! Powering On/Off: Standby Mode Press and hold the control three seconds in order to put the monitor in Standby mode. The volume will decrease gradually while the LED ring lights up once around the Volume control. Afterwards, the LED on the right end will remain dimly lit and the power consumption is reduced to 1 watt. Volume The volume can be adjusted by turning the knob. Depending on the LED mode selected, the volume will be displayed as a dim/ bright circle or as a dim/bright point. Mute To put the monitor in Mute Mode, turn the volume control counter clockwise until you reach the minimum level. When the LED on the left end lights up dimly the Mute Mode is activated. Settings Press the SMART-knob once to enter the Settings menu. Here you can set different filters as well as the LED ring’s behavior. The LED of the currently active function blinks. Click the different filters above to find out more about them! High Filter The High-Shelf Filter helps you adjust frequencies above 3kHz in 0.5dB increments. You may need it in the following situations: Distance from Speakers: High frequencies weaken as you move further from the speakers. If you sit far from the speakers, boost the high frequencies. If you're close, like in a desktop setup (about 1 meter or 3 feet away), you might need to reduce the high frequencies. Room Acoustics: In a room with few reflective surfaces ("dead room"), boosting high frequencies can create a more balanced sound. Conversely, in a room with many reflective surfaces, reducing the high frequencies is advisable. Adjust the High Filter accordingly and achieve the best sound quality based on your listening position. A dB/Hz graph showing the impact of the High Filter Mid Filter The Mid Filter is a bell filter centered at 1kHz. It allows you to boost or cut the midrange by up to +/-3dB in 0.5dB increments. Here's what you should consider: Frequency Balance: The midrange is crucial for balancing lower and higher mid frequencies. Use the Mid Filter to fine-tune the balance between the fundamental and harmonic frequencies in your music. Room Acoustics: The acoustics of your room can affect how midrange frequencies are perceived. Sound energy from the monitors may reflect off surfaces like walls, floors, and ceilings, altering the sound. Adjust the Mid Filter to compensate for these reflections and achieve a balanced sound. The Mid filter is available on SC2070, SC3070, SC4070, SC3010 and SC3012. A dB/Hz graph showing the impact of the Mid Filter Desk Filter The desk filter allows you to boost or cut you low-mid frequencies in 0.5dB increments: Narrow-Band EQ: Depending on the model the filter is centered between 160 and 200Hz. When turned down, it reduces the low-mid boost often caused by reflections from mixers and similar surfaces. Decrease the filter gain to lessen this effect. EQ at 80Hz: When turned up, it enhances the lower frequencies, giving more punch to the sound. A dB/Hz graph showing the impact of the Desk Filter Low Filter The Low-Shelf Filter allows you to boost or attenuate frequencies below 300Hz in 0.5dB steps. Here's when to use it: Attenuating Low Frequencies: If your room's acoustics cause a boost in low frequencies (due to room modes or speakers being close to walls), you can reduce them with the Low-Shelf Filter. Boosting Low Frequencies: If the low frequencies are too weak, you can enhance them to achieve a balanced frequency response. Adjust the Low-Shelf Filter accordingly to address any issues in the low frequency range caused by your room's acoustics. A dB/Hz graph showing the impact of the Low Filter LED The LED Mode determines how the LED ring displays the volume level. There are four available modes: Bright Ring: All LEDs up to the selected volume level light up brightly. As the signal gets louder, he brightly lit ring extends. Bright Point: Only the LED corresponding to the selected volume level lights up brightly. As the signal gets louder, the brightly lit point moves further up. Dim Ring: All LEDs up to the selected volume level light up dimly. As the signal gets louder, the dimly lit ring extends. The LEDs light up brightly momentarily when you adjust the volume. Dim Point: Only the LED corresponding to the selected volume level lights up dimly. As the signal gets louder, the dimly lit point moves further up. In all modes, the LEDs indicate vol Technical Specs All facts and figures in detail Dimensions 500x215x310 19.7x8.5x12.2 inches (WxHxD) Frequency range 40 Hz - 21 kHz -3 dB at 1 m distance Sound pressure level 114 dB Max. SPL per pair Output power 250 W Output power per speaker Woofer size 6,5" Diameter Cross-over frequency 300 & 2800 Hz Cross-over between drivers General Tweeter AMT RS2 Output power tweeter 50 W Mid-driver 6,5" Output power mid-driver 100 W Woofer 6,5" Output power woofer 100 W Protection limiter Yes Weight 12,4 kg (27.3 lb) Settings Volume - ∞ to + 6 dB High-shelf filter (-5 dB to +3 dB) > 3 kHz Mid EQ (-3 dB to +3 dB) - Desk filter cut (-5 dB to 0 dB) 160 Hz Desk filter boost (0 dB to +3 dB) 80 Hz Low-shelf filter (-5 dB to +3 dB) < 300 Hz Adjustable LED brightness Yes Level-lock dip switch Yes Filter-lock dip switch Yes Connectors (10k impedance) RCA in XLR in Power consumption Standby < 1 W Maximum 350 VA
EVE Audio SC2070

SC2070 Active 2-way midfield studio monitor SC2070 Compact monitor with an extra-large Air Motion Transformer New standards for detailed sound reproduction The most important features at a glance 38 Hz - 25 kHz Frequency range 6,5" Woofer size 106 dB Max. SPL Engineered to the detail An optimised, low-resonance enclosure with a reinforced front baffle houses the Air Motion Transformer RS7 and a 6.5" SilverCone woofer, as well as the amplifier unit with a total output power of 250W. Intelligent protection mechanisms prevent the drivers from overload. The bevelled cabinet edges reduce sound diffractions. All adjustments can be made via the SMART-knob, which is a trademark of all EVE Audio studio monitors. Thus, a variety of improvements to the respective room situations can be made in the easiest way possible from the front of the studio monitor. On the strength of the combination of these technologies, the SC2070 offers unmatched performance for its compact size with maximum impulse fidelity. More than just a speaker The sound enjoys the spotlight, but our monitors offer a holistic solution that is well thought out from A to Z SMART-knob Simply set and save filters & volume. Bass-reflex design For precise bass reproduction without background noise. Parameter lock Your settings are protected (even without power). Safe Fade-In A slow volume increase when switching on protects ears and equipment. The Air Motion Transformer RS7, specially developed for SC2070, is the largest AMT used in a 2-way monitor. The diaphragm area is 1.5 times larger than that of AMT RS1, RS2, RS3 and RS3.1 used in our other models and almost as large as in AMT RS6, which is employed exclusively in our main monitors SC3010 and SC3012. With great precision and detail, the RS7 reproduces silky smooth top end down to upper midrange frequencies. With a crossover frequency set to deep 1800Hz, the midrange imaging is assured at levels like those normally found in 3-way systems. The 6.5" SilverCone woofer is driven by an advanced, low distortion copper cap magnet system with a 1.5" voice coil. The combination of very light and extremely stiff honeycomb cone material enables this woofer to provide a solid base with low distortion and precise and dynamic bass. Two high-quality Class D amplifiers complete the system and provide enough output power to meet the demands of modern music production. The maximum input level can be adjusted between 7dBu and 22dBu to ensure the best possible A/D converter resolution. The Air Motion Transformer We reinvented our own version of the ribbon tweeter technology which our speakers are well known for.   Understanding the Air Motion Transformer The Air Motion Transformer (AMT) is a unique driver technology, distinct from other audio drivers. It utilizes a lightweight, hand-folded diaphragm that is thinly coated with aluminum. The current of the music signal flows through these conductive strands. The diaphragm is placed in a powerful magnetic field leading to movement in the folds caused by the Lorentz force. Due to the opposing direction of the current the walls of each single fold work against each other. The air between the folds is squeezed in and out at a ratio of 1:4, compared to the 1:1 ratio of a regular dome tweeter. This results in higher resolution and dynamics in the tweeter section, along with a very low distortion level, allowing superior sound quality with enhanced detail and clarity. The SMART-knob The print around the SMART-knobThe SMART-knob found on EVE Audio studio monitorsHighMidDeskLowLEDClick the filters! Powering On/Off: Standby Mode Press and hold the control three seconds in order to put the monitor in Standby mode. The volume will decrease gradually while the LED ring lights up once around the Volume control. Afterwards, the LED on the right end will remain dimly lit and the power consumption is reduced to 1 watt. Volume The volume can be adjusted by turning the knob. Depending on the LED mode selected, the volume will be displayed as a dim/ bright circle or as a dim/bright point. Mute To put the monitor in Mute Mode, turn the volume control counter clockwise until you reach the minimum level. When the LED on the left end lights up dimly the Mute Mode is activated. Settings Press the SMART-knob once to enter the Settings menu. Here you can set different filters as well as the LED ring’s behavior. The LED of the currently active function blinks. Click the different filters above to find out more about them! High Filter The High-Shelf Filter helps you adjust frequencies above 3kHz in 0.5dB increments. You may need it in the following situations: Distance from Speakers: High frequencies weaken as you move further from the speakers. If you sit far from the speakers, boost the high frequencies. If you're close, like in a desktop setup (about 1 meter or 3 feet away), you might need to reduce the high frequencies. Room Acoustics: In a room with few reflective surfaces ("dead room"), boosting high frequencies can create a more balanced sound. Conversely, in a room with many reflective surfaces, reducing the high frequencies is advisable. Adjust the High Filter accordingly and achieve the best sound quality based on your listening position. A dB/Hz graph showing the impact of the High Filter Mid Filter The Mid Filter is a bell filter centered at 1kHz. It allows you to boost or cut the midrange by up to +/-3dB in 0.5dB increments. Here's what you should consider: Frequency Balance: The midrange is crucial for balancing lower and higher mid frequencies. Use the Mid Filter to fine-tune the balance between the fundamental and harmonic frequencies in your music. Room Acoustics: The acoustics of your room can affect how midrange frequencies are perceived. Sound energy from the monitors may reflect off surfaces like walls, floors, and ceilings, altering the sound. Adjust the Mid Filter to compensate for these reflections and achieve a balanced sound. The Mid filter is available on SC2070, SC3070, SC4070, SC3010 and SC3012. A dB/Hz graph showing the impact of the Mid Filter Desk Filter The desk filter allows you to boost or cut you low-mid frequencies in 0.5dB increments: Narrow-Band EQ: Depending on the model the filter is centered between 160 and 200Hz. When turned down, it reduces the low-mid boost often caused by reflections from mixers and similar surfaces. Decrease the filter gain to lessen this effect. EQ at 80Hz: When turned up, it enhances the lower frequencies, giving more punch to the sound. A dB/Hz graph showing the impact of the Desk Filter Low Filter The Low-Shelf Filter allows you to boost or attenuate frequencies below 300Hz in 0.5dB steps. Here's when to use it: Attenuating Low Frequencies: If your room's acoustics cause a boost in low frequencies (due to room modes or speakers being close to walls), you can reduce them with the Low-Shelf Filter. Boosting Low Frequencies: If the low frequencies are too weak, you can enhance them to achieve a balanced frequency response. Adjust the Low-Shelf Filter accordingly to address any issues in the low frequency range caused by your room's acoustics. Technical Specs All facts and figures in detail Dimensions 230x345x304 9.1x13.6x12 inches (WxHxD) Frequency range 38 Hz - 25 kHz -3 dB at 1 m distance Sound pressure level 106 dB Max. SPL per pair Output power 250 W Output power per speaker Woofer size 6,5" Diameter Cross-over frequency 1800 Hz Cross-over between drivers General Tweeter AMT RS7 Output power tweeter 100 W Woofer 6,5" Output power woofer 150 W Protection limiter Yes Weight 9,4 kg (20.7 lb) Settings Volume - ∞ to + 6 dB High-shelf filter (-5 dB to +3 dB) > 3 kHz Mid EQ (-3 dB to +3 dB) 1 kHz Desk filter cut (-5 dB to 0 dB) 160 Hz Desk filter boost (0 dB to +3 dB) 80 Hz Low-shelf filter (-5 dB to +3 dB) < 300 Hz Adjustable LED brightness Yes Level-lock dip switch Yes Filter-lock dip switch Yes Input level dip switch +7 dBu / +22 dBu Connectors (10k impedance) RCA in XLR in Power consumption Standby < 1 W Maximum 170 VA
EVE Audio SC 3070 Active 3 ...

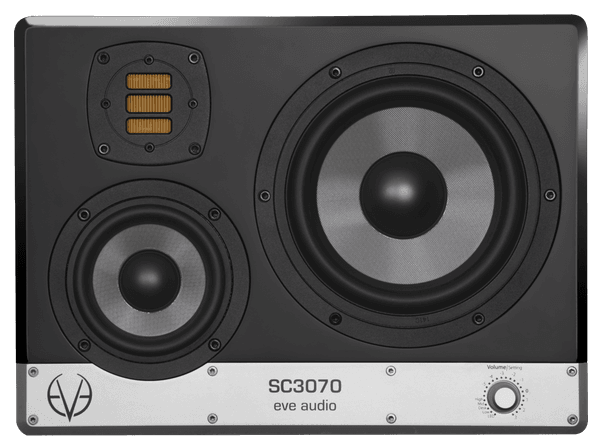

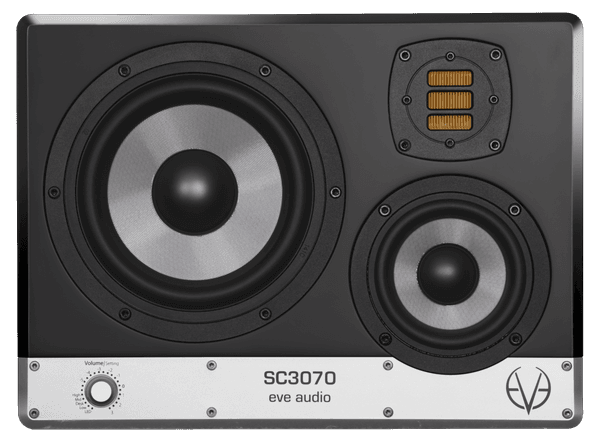

Ta kontakt for tilbud!     NB:Pris pr stk. Ta kontakt for tilbud og pris på frakt på denne!     Active 3-way studio monitor SC3070 Ultra-compact speaker with precise sound image for every studio Compact and balanced powercube The most important features at a glance 35 Hz - 25 kHz Frequency range 6,5" Woofer size 110 dB Max. SPL The SC3070 The SC3070 is a high-resolution, tri-amplified midfield monitor optimized for a precise midrange and powerful bass response, making it especially well-suited for applications where the complete skill set of a fully-fledged 3-way system is required, but where space is at a premium. The active reference studio monitor expands the existing range of three-way speakers with a smaller version. This model achieves the outstanding mid-range reproduction of the mid-high section our TEC Award winning SC4070 is known for with exceptional balance and low distortion over the entire frequency range, but in a much more compact cabinet. The SC3070 is the ideal solution for recording, mastering and home studios. EVE Audio's own Air Motion Transformer RS3.1 is combined with a specially designed 4" midrange driver to give the SC3070 accurate and un-hyped transmission of high and mid frequencies without being tiring. A 7" woofer driver rounds out the SC3070 by providing precise and powerful low frequencies. The bass and mid-range drivers are the same SilverCone found in existing models from EVE Audio that have proven their worth in top studios all over the world. These drivers work with a low-distortion copper-cap magnet system, which significantly reduces the distortion factor. The fiberglass-coated membrane material is constructed in a stable honeycomb structure to guarantee true tonal reproduction. More than just a speaker The sound enjoys the spotlight, but our monitors offer a holistic solution that is well thought out from A to Z SMART-knob Simply set and save filters & volume. Bass-reflex design For precise bass reproduction without background noise. Parameter lock Your settings are protected (even without power). Safe Fade-In A slow volume increase when switching on protects ears and equipment. DSP and SMART-knob All EVE Audio monitors feature a high-resolution DSP electronics. A high-quality analog/digital converter from BurrBrown (24bit/192kHz) converts the analog input signal supplied via RCA or XLR. The DSP provides latency-free filtering while protecting tweeter and woofers against overload across the entire frequency range. When switched on, the volume of the monitor increases slowly to leave enough time to reduce the source volume if the input signal is too loud. Adjustments to the acoustic environment can be made via the front rotary/pressure encoder, the SMART-knob with rotating LED ring. This knob allows the levelling of system volume as well as the adjustment of filters for room variables (low shelf, mid eq and high shelf filters). All settings are displayed on the LED ring, providing instant information about the selected values. The brightness of the LED ring can be adjusted for dark studios or video applications. High-quality Class D amplifiers complete the system and deliver enough power to the demands of modern music production. Selected volume and/or filter settings can be independently fixed with DIP-switches that are positioned on the rear of the amplifier to prevent unauthorised or unintentional adjustments. The Air Motion Transformer We reinvented our own version of the ribbon tweeter technology which our speakers are well known for.   Understanding the Air Motion Transformer The Air Motion Transformer (AMT) is a unique driver technology, distinct from other audio drivers. It utilizes a lightweight, hand-folded diaphragm that is thinly coated with aluminum. The current of the music signal flows through these conductive strands. The diaphragm is placed in a powerful magnetic field leading to movement in the folds caused by the Lorentz force. Due to the opposing direction of the current the walls of each single fold work against each other. The air between the folds is squeezed in and out at a ratio of 1:4, compared to the 1:1 ratio of a regular dome tweeter. This results in higher resolution and dynamics in the tweeter section, along with a very low distortion level, allowing superior sound quality with enhanced detail and clarity. Watch "AMT Tech & Benefits" video The SMART-knob The print around the SMART-knobThe SMART-knob found on EVE Audio studio monitorsHighMidDeskLowLEDClick the filters! Powering On/Off: Standby Mode Press and hold the control three seconds in order to put the monitor in Standby mode. The volume will decrease gradually while the LED ring lights up once around the Volume control. Afterwards, the LED on the right end will remain dimly lit and the power consumption is reduced to 1 watt. Volume The volume can be adjusted by turning the knob. Depending on the LED mode selected, the volume will be displayed as a dim/ bright circle or as a dim/bright point. Mute To put the monitor in Mute Mode, turn the volume control counter clockwise until you reach the minimum level. When the LED on the left end lights up dimly the Mute Mode is activated. Settings Press the SMART-knob once to enter the Settings menu. Here you can set different filters as well as the LED ring’s behavior. The LED of the currently active function blinks. Click the different filters above to find out more about them! High Filter The High-Shelf Filter helps you adjust frequencies above 3kHz in 0.5dB increments. You may need it in the following situations: Distance from Speakers: High frequencies weaken as you move further from the speakers. If you sit far from the speakers, boost the high frequencies. If you're close, like in a desktop setup (about 1 meter or 3 feet away), you might need to reduce the high frequencies. Room Acoustics: In a room with few reflective surfaces ("dead room"), boosting high frequencies can create a more balanced sound. Conversely, in a room with many reflective surfaces, reducing the high frequencies is advisable. Adjust the High Filter accordingly and achieve the best sound quality based on your listening position. A dB/Hz graph showing the impact of the High Filter Mid Filter The Mid Filter is a bell filter centered at 1kHz. It allows you to boost or cut the midrange by up to +/-3dB in 0.5dB increments. Here's what you should consider: Frequency Balance: The midrange is crucial for balancing lower and higher mid frequencies. Use the Mid Filter to fine-tune the balance between the fundamental and harmonic frequencies in your music. Room Acoustics: The acoustics of your room can affect how midrange frequencies are perceived. Sound energy from the monitors may reflect off surfaces like walls, floors, and ceilings, altering the sound. Adjust the Mid Filter to compensate for these reflections and achieve a balanced sound. The Mid filter is available on SC2070, SC3070, SC4070, SC3010 and SC3012. A dB/Hz graph showing the impact of the Mid Filter Desk Filter The desk filter allows you to boost or cut you low-mid frequencies in 0.5dB increments: Narrow-Band EQ: Depending on the model the filter is centered between 160 and 200Hz. When turned down, it reduces the low-mid boost often caused by reflections from mixers and similar surfaces. Decrease the filter gain to lessen this effect. EQ at 80Hz: When turned up, it enhances the lower frequencies, giving more punch to the sound. A dB/Hz graph showing the impact of the Desk Filter Low Filter The Low-Shelf Filter allows you to boost or attenuate frequencies below 300Hz in 0.5dB steps. Here's when to use it: Attenuating Low Frequencies: If your room's acoustics cause a boost in low frequencies (due to room modes or speakers being close to walls), you can reduce them with the Low-Shelf Filter. Boosting Low Frequencies: If the low frequencies are too weak, you can enhance them to achieve a balanced frequency response. Adjust the Low-Shelf Filter accordingly to address any issues in the low frequency range caused by your room's acoustics. A dB/Hz graph showing the impact of the Low Filter LED The LED Mode determines how the LED ring displays the volume level. There are four available modes: Bright Ring: All LEDs up to the selected volume level light up brightly. As the signal gets louder, he brightly lit ring extends. Bright Point: Only the LED corresponding to the selected volume level lights up brightly. As the signal gets louder, the brightly lit point moves further up. Dim Ring: All LEDs up to the selected volume level light up dimly. As the signal gets louder, the dimly lit ring extends. The LEDs light up brightly momentarily when you adjust the volume. Dim Point: Only the LED corresponding to the selected volume level lights up dimly. As the signal gets louder, the dimly lit point moves further up. In all modes, the LEDs indicate volume levels, adjusting in four steps. Intermediate steps are shown by the brightness level between two adjacent LEDs. Technical Specs All facts and figures in detail Dimensions 340x250x310 13.4x9.8x12.2 inches (WxHxD) Frequency range 35 Hz - 25 kHz -3 dB at 1 m distance Sound pressure level 110 dB Max. SPL per pair Output power 335 W Output power per speaker Woofer size 6,5" Diameter Cross-over frequency 320 & 2800 Hz Cross-over between drivers General Tweeter AMT RS3.1 Output power tweeter 50 W Mid-driver 4" Output power mid-driver 100 W Woofer 6,5" Output power woofer 185 W Protection limiter Yes Weight 9,8 kg (21.6 lb) Settings Volume - ∞ to + 6 dB High-shelf filter (-5 dB to +3 dB) > 3 kHz Mid EQ (-3 dB to +3 dB) 1 kHz Desk filter cut (-5 dB to 0 dB) 160 Hz Desk filter boost (0 dB to +3 dB) 80 Hz Low-shelf filter (-5 dB to +3 dB) < 300 Hz Adjustable LED brightness Yes Level-lock dip switch Yes Filter-lock dip switch Yes Input level dip switch +7 dBu / +22 dBu Connectors (10k impedance) RCA in XLR in Power consumption Standby < 1 W Maximum 220 VA Free-field frequency response (1/6 oct.) Red = 0° / Green = 30° horizontal off-axis Distortion Orange = 2nd / Green = 3rd vs frequency response (red) Polar Pattern (1m) Red = 200Hz / Green = 1kHz / Blue = 5kHz     Technical Specs All facts and figures in detail Dimensions 340x250x310 13.4x9.8x12.2 inches (WxHxD) Frequency range 35 Hz - 25 kHz -3 dB at 1 m distance Sound pressure level 110 dB Max. SPL per pair Output power 335 W Output power per speaker Woofer size 6,5" Diameter Cross-over frequency 320 & 2800 Hz Cross-over between drivers General   Tweeter AMT RS3.1   Output power tweeter 50 W   Mid-driver 4"   Output power mid-driver 100 W   Woofer 6,5"   Output power woofer 185 W   Protection limiter Yes   Weight 9,8 kg (21.6 lb)   Settings   Volume - ∞ to + 6 dB   High-shelf filter (-5 dB to +3 dB) > 3 kHz   Mid EQ (-3 dB to +3 dB) 1 kHz   Desk filter cut (-5 dB to 0 dB) 160 Hz   Desk filter boost (0 dB to +3 dB) 80 Hz   Low-shelf filter (-5 dB to +3 dB) < 300 Hz   Adjustable LED brightness Yes   Level-lock dip switch Yes   Filter-lock dip switch Yes   Input level dip switch +7 dBu / +22 dBu   Connectors (10k impedance)   RCA in   XLR in   Power consumption   Standby < 1 W   Maximum 220 VA   Free-field frequency response (1/6 oct.) Red = 0° / Green = 30° horizontal off-axis   Distortion Orange = 2nd / Green = 3rd vs frequency response (red)   Polar Pattern (1m) Red = 200Hz / Green = 1kHz / Blue = 5kHz
EVE Audio SC 3070 Active 3 ...

  Ta kontakt for tilbud! NB:Pris pr stk. Ta kontakt for tilbud og pris på frakt på denne!     Active 3-way studio monitor SC3070 Ultra-compact speaker with precise sound image for every studio Compact and balanced powercube The most important features at a glance 35 Hz - 25 kHz Frequency range 6,5" Woofer size 110 dB Max. SPL The SC3070 The SC3070 is a high-resolution, tri-amplified midfield monitor optimized for a precise midrange and powerful bass response, making it especially well-suited for applications where the complete skill set of a fully-fledged 3-way system is required, but where space is at a premium. The active reference studio monitor expands the existing range of three-way speakers with a smaller version. This model achieves the outstanding mid-range reproduction of the mid-high section our TEC Award winning SC4070 is known for with exceptional balance and low distortion over the entire frequency range, but in a much more compact cabinet. The SC3070 is the ideal solution for recording, mastering and home studios. EVE Audio's own Air Motion Transformer RS3.1 is combined with a specially designed 4" midrange driver to give the SC3070 accurate and un-hyped transmission of high and mid frequencies without being tiring. A 7" woofer driver rounds out the SC3070 by providing precise and powerful low frequencies. The bass and mid-range drivers are the same SilverCone found in existing models from EVE Audio that have proven their worth in top studios all over the world. These drivers work with a low-distortion copper-cap magnet system, which significantly reduces the distortion factor. The fiberglass-coated membrane material is constructed in a stable honeycomb structure to guarantee true tonal reproduction. More than just a speaker The sound enjoys the spotlight, but our monitors offer a holistic solution that is well thought out from A to Z SMART-knob Simply set and save filters & volume. Bass-reflex design For precise bass reproduction without background noise. Parameter lock Your settings are protected (even without power). Safe Fade-In A slow volume increase when switching on protects ears and equipment. DSP and SMART-knob All EVE Audio monitors feature a high-resolution DSP electronics. A high-quality analog/digital converter from BurrBrown (24bit/192kHz) converts the analog input signal supplied via RCA or XLR. The DSP provides latency-free filtering while protecting tweeter and woofers against overload across the entire frequency range. When switched on, the volume of the monitor increases slowly to leave enough time to reduce the source volume if the input signal is too loud. Adjustments to the acoustic environment can be made via the front rotary/pressure encoder, the SMART-knob with rotating LED ring. This knob allows the levelling of system volume as well as the adjustment of filters for room variables (low shelf, mid eq and high shelf filters). All settings are displayed on the LED ring, providing instant information about the selected values. The brightness of the LED ring can be adjusted for dark studios or video applications. High-quality Class D amplifiers complete the system and deliver enough power to the demands of modern music production. Selected volume and/or filter settings can be independently fixed with DIP-switches that are positioned on the rear of the amplifier to prevent unauthorised or unintentional adjustments. The Air Motion Transformer We reinvented our own version of the ribbon tweeter technology which our speakers are well known for.   Understanding the Air Motion Transformer The Air Motion Transformer (AMT) is a unique driver technology, distinct from other audio drivers. It utilizes a lightweight, hand-folded diaphragm that is thinly coated with aluminum. The current of the music signal flows through these conductive strands. The diaphragm is placed in a powerful magnetic field leading to movement in the folds caused by the Lorentz force. Due to the opposing direction of the current the walls of each single fold work against each other. The air between the folds is squeezed in and out at a ratio of 1:4, compared to the 1:1 ratio of a regular dome tweeter. This results in higher resolution and dynamics in the tweeter section, along with a very low distortion level, allowing superior sound quality with enhanced detail and clarity. Watch "AMT Tech & Benefits" video The SMART-knob The print around the SMART-knobThe SMART-knob found on EVE Audio studio monitorsHighMidDeskLowLEDClick the filters! Powering On/Off: Standby Mode Press and hold the control three seconds in order to put the monitor in Standby mode. The volume will decrease gradually while the LED ring lights up once around the Volume control. Afterwards, the LED on the right end will remain dimly lit and the power consumption is reduced to 1 watt. Volume The volume can be adjusted by turning the knob. Depending on the LED mode selected, the volume will be displayed as a dim/ bright circle or as a dim/bright point. Mute To put the monitor in Mute Mode, turn the volume control counter clockwise until you reach the minimum level. When the LED on the left end lights up dimly the Mute Mode is activated. Settings Press the SMART-knob once to enter the Settings menu. Here you can set different filters as well as the LED ring’s behavior. The LED of the currently active function blinks. Click the different filters above to find out more about them! High Filter The High-Shelf Filter helps you adjust frequencies above 3kHz in 0.5dB increments. You may need it in the following situations: Distance from Speakers: High frequencies weaken as you move further from the speakers. If you sit far from the speakers, boost the high frequencies. If you're close, like in a desktop setup (about 1 meter or 3 feet away), you might need to reduce the high frequencies. Room Acoustics: In a room with few reflective surfaces ("dead room"), boosting high frequencies can create a more balanced sound. Conversely, in a room with many reflective surfaces, reducing the high frequencies is advisable. Adjust the High Filter accordingly and achieve the best sound quality based on your listening position. A dB/Hz graph showing the impact of the High Filter Mid Filter The Mid Filter is a bell filter centered at 1kHz. It allows you to boost or cut the midrange by up to +/-3dB in 0.5dB increments. Here's what you should consider: Frequency Balance: The midrange is crucial for balancing lower and higher mid frequencies. Use the Mid Filter to fine-tune the balance between the fundamental and harmonic frequencies in your music. Room Acoustics: The acoustics of your room can affect how midrange frequencies are perceived. Sound energy from the monitors may reflect off surfaces like walls, floors, and ceilings, altering the sound. Adjust the Mid Filter to compensate for these reflections and achieve a balanced sound. The Mid filter is available on SC2070, SC3070, SC4070, SC3010 and SC3012. A dB/Hz graph showing the impact of the Mid Filter Desk Filter The desk filter allows you to boost or cut you low-mid frequencies in 0.5dB increments: Narrow-Band EQ: Depending on the model the filter is centered between 160 and 200Hz. When turned down, it reduces the low-mid boost often caused by reflections from mixers and similar surfaces. Decrease the filter gain to lessen this effect. EQ at 80Hz: When turned up, it enhances the lower frequencies, giving more punch to the sound. A dB/Hz graph showing the impact of the Desk Filter Low Filter The Low-Shelf Filter allows you to boost or attenuate frequencies below 300Hz in 0.5dB steps. Here's when to use it: Attenuating Low Frequencies: If your room's acoustics cause a boost in low frequencies (due to room modes or speakers being close to walls), you can reduce them with the Low-Shelf Filter. Boosting Low Frequencies: If the low frequencies are too weak, you can enhance them to achieve a balanced frequency response. Adjust the Low-Shelf Filter accordingly to address any issues in the low frequency range caused by your room's acoustics. A dB/Hz graph showing the impact of the Low Filter LED The LED Mode determines how the LED ring displays the volume level. There are four available modes: Bright Ring: All LEDs up to the selected volume level light up brightly. As the signal gets louder, he brightly lit ring extends. Bright Point: Only the LED corresponding to the selected volume level lights up brightly. As the signal gets louder, the brightly lit point moves further up. Dim Ring: All LEDs up to the selected volume level light up dimly. As the signal gets louder, the dimly lit ring extends. The LEDs light up brightly momentarily when you adjust the volume. Dim Point: Only the LED corresponding to the selected volume level lights up dimly. As the signal gets louder, the dimly lit point moves further up. In all modes, the LEDs indicate volume levels, adjusting in four steps. Intermediate steps are shown by the brightness level between two adjacent LEDs. Technical Specs All facts and figures in detail Dimensions 340x250x310 13.4x9.8x12.2 inches (WxHxD) Frequency range 35 Hz - 25 kHz -3 dB at 1 m distance Sound pressure level 110 dB Max. SPL per pair Output power 335 W Output power per speaker Woofer size 6,5" Diameter Cross-over frequency 320 & 2800 Hz Cross-over between drivers General Tweeter AMT RS3.1 Output power tweeter 50 W Mid-driver 4" Output power mid-driver 100 W Woofer 6,5" Output power woofer 185 W Protection limiter Yes Weight 9,8 kg (21.6 lb) Settings Volume - ∞ to + 6 dB High-shelf filter (-5 dB to +3 dB) > 3 kHz Mid EQ (-3 dB to +3 dB) 1 kHz Desk filter cut (-5 dB to 0 dB) 160 Hz Desk filter boost (0 dB to +3 dB) 80 Hz Low-shelf filter (-5 dB to +3 dB) < 300 Hz Adjustable LED brightness Yes Level-lock dip switch Yes Filter-lock dip switch Yes Input level dip switch +7 dBu / +22 dBu Connectors (10k impedance) RCA in XLR in Power consumption Standby < 1 W Maximum 220 VA Free-field frequency response (1/6 oct.) Red = 0° / Green = 30° horizontal off-axis Distortion Orange = 2nd / Green = 3rd vs frequency response (red) Polar Pattern (1m) Red = 200Hz / Green = 1kHz / Blue = 5kHz     Technical Specs All facts and figures in detail Dimensions 340x250x310 13.4x9.8x12.2 inches (WxHxD) Frequency range 35 Hz - 25 kHz -3 dB at 1 m distance Sound pressure level 110 dB Max. SPL per pair Output power 335 W Output power per speaker Woofer size 6,5" Diameter Cross-over frequency 320 & 2800 Hz Cross-over between drivers General   Tweeter AMT RS3.1   Output power tweeter 50 W   Mid-driver 4"   Output power mid-driver 100 W   Woofer 6,5"   Output power woofer 185 W   Protection limiter Yes   Weight 9,8 kg (21.6 lb)   Settings   Volume - ∞ to + 6 dB   High-shelf filter (-5 dB to +3 dB) > 3 kHz   Mid EQ (-3 dB to +3 dB) 1 kHz   Desk filter cut (-5 dB to 0 dB) 160 Hz   Desk filter boost (0 dB to +3 dB) 80 Hz   Low-shelf filter (-5 dB to +3 dB) < 300 Hz   Adjustable LED brightness Yes   Level-lock dip switch Yes   Filter-lock dip switch Yes   Input level dip switch +7 dBu / +22 dBu   Connectors (10k impedance)   RCA in   XLR in   Power consumption   Standby < 1 W   Maximum 220 VA   Free-field frequency response (1/6 oct.) Red = 0° / Green = 30° horizontal off-axis   Distortion Orange = 2nd / Green = 3rd vs frequency response (red)   Polar Pattern (1m) Red = 200Hz / Green = 1kHz / Blue = 5kHz
EVE Audio SC4070

NB:Pris pr stk. Ta kontakt for tilbud og pris på frakt på denne!     SC4070 Active 4-way midfield studio monitor SC4070 No compromise and TEC-Award winning studio monitor New benchmark for versatility and clarity The most important features at a glance 32 Hz - 25 kHz Frequency range 6,5" Woofer size 116 dB Max. SPL The SC4070 active studio monitor supersedes SC407 but continues to build on its predecessor, further redefining expected levels of sonic performance and accuracy for this truly world-class no-compromise monitoring system. SC4070 features an advanced tweeter/mid range section and enhances the capability to reproduce low frequencies with two 6,5“ woofers connected to a very powerful amplifier array. Twin woofers allow reducing distortion even on high SPL and deliver an incredible tight and homogenous bass reproduction and very linear overall response. Adaptable by design These 4-way monitors are symmetrically designed. The eye catching central and massive silver aluminium plate is more than just an attractive design characteristic. It not only houses the midrange woofer and AMT tweeter but is rotatable to make the monitors equally suitable for vertical or horizontal positioning. Room adaption filters and volume control are accessible via SMART-knob with LED ring to indicate all settings with outmost precision. A sophisticated cabinet completes the sleek design. The bevelled and ultra-stiff front plate reduces unwanted resonances and diffraction. More than just a speaker The sound enjoys the spotlight, but our monitors offer a holistic solution that is well thought out from A to Z. Our 4-way monitoring system SC4070 features two 6.5" SilverCone woofers with a specially made 1.5” voice coil to extend the bass frequency response down to 32Hz. Both woofers work simultaneously up to 280Hz. An especially developed 4" SilverCone midrange unit joins these high quality bass drivers that endows these speakers with a greater linear excursion and clear and accurate midrange. The bass and mid woofers in our SC4070 feature our very low distortion copper cap magnet system. The combination of our unique glass fibre coated diaphragm and a very stiff but light honeycomb structure reproduces sound spectacularly detailed and clear. Our proprietary Air Motion Transformer AMT RS3.1 completes SC4070. The core of those AMT tweeters is a folded membrane that works in a powerful magnetic field of a large neodymium magnet. Due to design changes like new materials, improved inner damping construction and a more efficient magnet field SC4070 delivers a higher sound pressure level with virtually no distortion even at high output levels. This AMT RS3.1 can achieve to reproduce a frequency response up to 40 kHz. Each chassis in SC4070 is fitted with its own PWM amplifier for total short-term output power of 1000 W. With a max output level of 126dB (SPL @ 1m, half space, pair) mixes can be judged precisely, whatever their intended output level is. The SC4070 combines perfectly powerful bass with very transparent midrange and crystal clear but silky-smooth high frequencies and is predestined to be the perfect work piece for mid to large size control rooms where quality and consistent power output are important variables. As with every other EVE Audio studio monitor you get both balanced XLR input and unbalanced RCA input for greater convenience. The Air Motion Transformer We reinvented our own version of the ribbon tweeter technology which our speakers are well known for.   Understanding the Air Motion Transformer The Air Motion Transformer (AMT) is a unique driver technology, distinct from other audio drivers. It utilizes a lightweight, hand-folded diaphragm that is thinly coated with aluminum. The current of the music signal flows through these conductive strands. The diaphragm is placed in a powerful magnetic field leading to movement in the folds caused by the Lorentz force. Due to the opposing direction of the current the walls of each single fold work against each other. The air between the folds is squeezed in and out at a ratio of 1:4, compared to the 1:1 ratio of a regular dome tweeter. This results in higher resolution and dynamics in the tweeter section, along with a very low distortion level, allowing superior sound quality with enhanced detail and clarity. Technical Specs All facts and figures in detail Dimensions 600x260x320 23.6x10.2x12.6 inches (WxHxD) Frequency range 32 Hz - 25 kHz -3 dB at 1 m distance Sound pressure level 116 dB Max. SPL per pair Output power 1000 W Output power per speaker Woofer size 6,5" Diameter Cross-over frequency 280 & 3000 Hz Cross-over between drivers General Tweeter AMT RS3.1 Output power tweeter 250 W Mid-driver 4" Output power mid-driver 250 W Woofer 6,5" Output power woofer 2 x 250 W Protection limiter Yes Weight 18 kg (39.7 lb) Settings Volume - ∞ to + 6 dB High-shelf filter (-5 dB to +3 dB) > 3 kHz Mid EQ (-3 dB to +3 dB) 1 kHz Desk filter cut (-5 dB to 0 dB) 160 Hz Desk filter boost (0 dB to +3 dB) 80 Hz Low-shelf filter (-5 dB to +3 dB) < 300 Hz Adjustable LED brightness Yes Level-lock dip switch Yes Filter-lock dip switch Yes Input level dip switch +7 dBu / +22 dBu Connectors (10k impedance) RCA in XLR in Power consumption Standby < 1 W Maximum 500 VA
EVE Audio SC 3010 Active 3 ...

SC3010 Active 3-way main studio monitor SC3010 Main reference monitor for farfield applications in every professional production environment Precise power on all frequencies The most important features at a glance 29 Hz - 21 kHz Frequency range 10" Woofer size 126 dB Max. SPL The SC3010 For large recording and mastering studios, film and television post-production facilities, cinema applications and in-wall installations, nothing beats our main monitors SC3010 and SC3012. The SC3010 systems feature a very powerful amplifier array, with one amplifier per driver. All drivers, and especially our proprietary AMT RS6 tweeter, are developed to deliver high sound pressure levels, extremely low distortion and an optimized directivity. Together with the ultra-stiff plywood front plate and a special inner construction to lower resonances, they offer a smooth directivity, highly defined mids, pristine high frequencies and a powerful and tight low end. The SC3010 systems are also built with in-wall installations in mind. In this case, simply adjust the filter controls to "inwall". A set of high-density foam is provided to close the backfiring bass ports. The silver module housing the midrange driver and our AMT RS6 tweeter can be rotated by 90 degrees allowing you to set up the speakers either horizontally or vertically. The smallest of the biggest The SC3010 is the smallest of the biggest in our range of main monitors and able to reproduce the entire audible frequency range with an ultra-low level of distortion. One 10" double coated low resonance metal diaphragm bass woofer, with a long excursion, provides for an extraordinarily clean low frequency reproduction down to 30 Hz (-3 dB) and easily reproduces all audio content, even at higher than usual SPL's. The SC3010 also features our newly developed 5" midrange unit. Its glass fibre layered Rohacel™ sandwich diaphragm delivers a clear and detailed midrange frequency reproduction. Both the 10" SilverCone woofer and 5" SilverCone midrange are equipped with our very low distortion copper cap magnet system. Exclusive to SC3010 – and its larger sibling SC3012 – is our large Air Motion Transformer AMT RS6. This AMT is 2.5 times bigger than the RS1, RS2 and RS3 Air Motion Transformer units, and it is a crucial part of the system as it helps to couple the middle and high frequencies with great precision. Our team was able to engineer the RS6 to set its crossover frequency at 1800 Hz, a very important frequency for human hearing and subsequently, music production. More than just a speaker The sound enjoys the spotlight, but our monitors offer a holistic solution that is well thought out from A to Z SMART-knob Simply set and save filters & volume. Bass-reflex design For precise bass reproduction without background noise. Parameter lock Your settings are protected (even without power). Safe Fade-In A slow volume increase when switching on protects ears and equipment. Judge your mixes more precisely Each driver is provided with its own separate PWM amplifier that is able to deliver a short-term output power of 250 W per tweeter and midrange channel and 800 W for the low-end driver. With a maximum output level of 114 dB (SPL @ 1 m), you will definitely be able to judge your mixes precisely, whatever their final intended output level is. The SC3010 is a three-way system that combines powerful bass reproduction with a very transparent and present mid-range and crystal clear high frequency reproduction. Make no mistakes: whether you're producing your new hip-hop hit or mastering the contemporary works, the SC3010's will be there for you and they will tell it like it is. Bad mixes no longer have a place to hide. As with every other EVE Audio speaker, you get both balanced XLR inputs and unbalanced RCA inputs for greater convenience. The Air Motion Transformer We reinvented our own version of the ribbon tweeter technology which our speakers are well known for.   Understanding the Air Motion Transformer The Air Motion Transformer (AMT) is a unique driver technology, distinct from other audio drivers. It utilizes a lightweight, hand-folded diaphragm that is thinly coated with aluminum. The current of the music signal flows through these conductive strands. The diaphragm is placed in a powerful magnetic field leading to movement in the folds caused by the Lorentz force. Due to the opposing direction of the current the walls of each single fold work against each other. The air between the folds is squeezed in and out at a ratio of 1:4, compared to the 1:1 ratio of a regular dome tweeter. This results in higher resolution and dynamics in the tweeter section, along with a very low distortion level, allowing superior sound quality with enhanced detail and clarity. The SMART-knob The print around the SMART-knobThe SMART-knob found on EVE Audio studio monitorsHighMidDeskLowLEDClick the filters! Powering On/Off: Standby Mode Press and hold the control three seconds in order to put the monitor in Standby mode. The volume will decrease gradually while the LED ring lights up once around the Volume control. Afterwards, the LED on the right end will remain dimly lit and the power consumption is reduced to 1 watt. Volume The volume can be adjusted by turning the knob. Depending on the LED mode selected, the volume will be displayed as a dim/ bright circle or as a dim/bright point. Mute To put the monitor in Mute Mode, turn the volume control counter clockwise until you reach the minimum level. When the LED on the left end lights up dimly the Mute Mode is activated. Settings Press the SMART-knob once to enter the Settings menu. Here you can set different filters as well as the LED ring’s behavior. The LED of the currently active function blinks. Click the different filters above to find out more about them! High Filter The High-Shelf Filter helps you adjust frequencies above 3kHz in 0.5dB increments. You may need it in the following situations: Distance from Speakers: High frequencies weaken as you move further from the speakers. If you sit far from the speakers, boost the high frequencies. If you're close, like in a desktop setup (about 1 meter or 3 feet away), you might need to reduce the high frequencies. Room Acoustics: In a room with few reflective surfaces ("dead room"), boosting high frequencies can create a more balanced sound. Conversely, in a room with many reflective surfaces, reducing the high frequencies is advisable. Adjust the High Filter accordingly and achieve the best sound quality based on your listening position. A dB/Hz graph showing the impact of the High Filter Mid Filter The Mid Filter is a bell filter centered at 1kHz. It allows you to boost or cut the midrange by up to +/-3dB in 0.5dB increments. Here's what you should consider: Frequency Balance: The midrange is crucial for balancing lower and higher mid frequencies. Use the Mid Filter to fine-tune the balance between the fundamental and harmonic frequencies in your music. Room Acoustics: The acoustics of your room can affect how midrange frequencies are perceived. Sound energy from the monitors may reflect off surfaces like walls, floors, and ceilings, altering the sound. Adjust the Mid Filter to compensate for these reflections and achieve a balanced sound. The Mid filter is available on SC2070, SC3070, SC4070, SC3010 and SC3012. A dB/Hz graph showing the impact of the Mid Filter Desk Filter The desk filter allows you to boost or cut you low-mid frequencies in 0.5dB increments: Narrow-Band EQ: Depending on the model the filter is centered between 160 and 200Hz. When turned down, it reduces the low-mid boost often caused by reflections from mixers and similar surfaces. Decrease the filter gain to lessen this effect. EQ at 80Hz: When turned up, it enhances the lower frequencies, giving more punch to the sound. A dB/Hz graph showing the impact of the Desk Filter Low Filter The Low-Shelf Filter allows you to boost or attenuate frequencies below 300Hz in 0.5dB steps. Here's when to use it: Attenuating Low Frequencies: If your room's acoustics cause a boost in low frequencies (due to room modes or speakers being close to walls), you can reduce them with the Low-Shelf Filter. Boosting Low Frequencies: If the low frequencies are too weak, you can enhance them to achieve a balanced frequency response. Adjust the Low-Shelf Filter accordingly to address any issues in the low frequency range caused by your room's acoustics. A dB/Hz graph showing the impact of the Low Filter Technical Specs All facts and figures in detail Dimensions 380x580x440 15x22.8x17.3 inches (WxHxD) Frequency range 29 Hz - 21 kHz -3 dB at 1 m distance Sound pressure level 126 dB Max. SPL per pair Output power 1300 W Output power per speaker Woofer size 10" Diameter Cross-over frequency 240 & 1800 Hz Cross-over between drivers General Tweeter AMT RS6 Output power tweeter 250 W Mid-driver 5" Output power mid-driver 250 W Woofer 10" Output power woofer 800 W Protection limiter Yes Weight 37 kg (81.6 lb) Settings Volume - ∞ to + 6 dB High-shelf filter (-5 dB to +3 dB) > 3 kHz Mid EQ (-3 dB to +3 dB) 1 kHz Desk filter cut (-5 dB to 0 dB) 160 Hz Desk filter boost (0 dB to +3 dB) 80 Hz Low-shelf filter (-5 dB to +3 dB) < 300 Hz Adjustable LED brightness Yes Level-lock dip switch Yes Filter-lock dip switch Yes Input level dip switch +7 dBu / +22 dBu Connectors (10k impedance) RCA in XLR in Power consumption Standby < 1 W Maximum 1000 VA
EVE Audio SC3012

SC3012 Active 3-way main studio monitor SC3012 Incomparable performance combined with breathtaking precision Big box - even bigger sound The most important features at a glance 25 Hz - 21 kHz Frequency range 12" Woofer size 130 dB Max. SPL The SC3012 For large recording and mastering studios, film and television facilities, cinema applications and wall installations, there is nothing better than our SC3010 and SC3012 main monitors. The SC3012 system features a very powerful amplifier array with one amplifier per driver. All drivers, especially our proprietary AMT RS6 tweeter, have been designed for high sound pressure levels, extremely low distortion and optimized directivity. Together with the ultra-stiff wood front panel and a special internal construction to reduce resonance, they provide even directivity, well-defined mids, flawless high frequencies and a powerful and tight low frequency response. The SC3012 systems were also developed for wall installations. For optimum sound, the filter control can be set to “inwall”. A set of high-density foam is included to seal the rear-facing bass ports. The silver panel, which houses the midrange driver and our AMT RS6 tweeter, can be rotated 90 degrees so that you can position the monitors either horizontally or vertically. The SC3012 is a high-resolution monitor that stands at the intersection of performance and precision. This monitor is a perfect fit for any serious recording or mastering studio. A sophisticated, double-coated 12-inch metal cone woofer with low resonance covers a frequency range down to low 25 Hz (-3 dB). Its long excursion driver effortlessly reproduces the lowest frequencies with an exceptionally low harmonic distortion level. The SC3012 also features a specially developed 5-inch midrange unit. The glass fiber coated Rohacel™ sandwich cone is responsible for a clear and detailed reproduction of midrange frequencies. Both the 12-inch SilverCone woofer and the 5-inch SilverCone midrange driver are equipped with our copper cap magnet system, which has very low distortion. The RS6 Air Motion Transformer (AMT) is exclusive to the SC3012 and the smaller SC3010 and completes the system. The RS6 has been developed to enable the SC3010/SC3012 to combine faithful high frequency reproduction with a clear and detailed high midrange. This new AMT is 2.5 times larger than the RS1, RS2 and RS3 Air Motion Transformers and is an important part of the system as it helps to couple the mid and high frequencies with great precision. The crossover frequency drops to 1800 Hz, ensuring a uniform directivity and a very well-defined mid to high frequency range. More than just a speaker The sound enjoys the spotlight, but our monitors offer a holistic solution that is well thought out from A to Z SMART-knob Simply set and save filters & volume. Bass-reflex design For precise bass reproduction without background noise. Parameter lock Your settings are protected (even without power). Safe Fade-In A slow volume increase when switching on protects ears and equipment. Full performance without compromise Each driver is powered by its own specified PWM amplifier. The tweeter and midrange are each supported by a 250 W amplifier, while the woofer is amplified by an 800 W PWM module via a bridge. All drivers are protected by a limiter detection circuit. With a maximum output level of 118 dB (SPL @ 1 m), you can easily judge your mixes accurately, regardless of their intended output level. Simply put, the SC3012 is the perfect combination of robustness and accuracy, where the whole is greater than the sum of the parts. The SC3012 is the pinnacle of EVE Audio engineering, our flagship model, and for good reason. As with all other EVE Audio monitors, there are both balanced XLR inputs and unbalanced RCA inputs for added convenience. The Air Motion Transformer We reinvented our own version of the ribbon tweeter technology which our speakers are well known for.   Understanding the Air Motion Transformer The Air Motion Transformer (AMT) is a unique driver technology, distinct from other audio drivers. It utilizes a lightweight, hand-folded diaphragm that is thinly coated with aluminum. The current of the music signal flows through these conductive strands. The diaphragm is placed in a powerful magnetic field leading to movement in the folds caused by the Lorentz force. Due to the opposing direction of the current the walls of each single fold work against each other. The air between the folds is squeezed in and out at a ratio of 1:4, compared to the 1:1 ratio of a regular dome tweeter. This results in higher resolution and dynamics in the tweeter section, along with a very low distortion level, allowing superior sound quality with enhanced detail and clarity. The SMART-knob The print around the SMART-knobThe SMART-knob found on EVE Audio studio monitorsHighMidDeskLowLEDClick the filters! Powering On/Off: Standby Mode Press and hold the control three seconds in order to put the monitor in Standby mode. The volume will decrease gradually while the LED ring lights up once around the Volume control. Afterwards, the LED on the right end will remain dimly lit and the power consumption is reduced to 1 watt. Volume The volume can be adjusted by turning the knob. Depending on the LED mode selected, the volume will be displayed as a dim/ bright circle or as a dim/bright point. Mute To put the monitor in Mute Mode, turn the volume control counter clockwise until you reach the minimum level. When the LED on the left end lights up dimly the Mute Mode is activated. Settings Press the SMART-knob once to enter the Settings menu. Here you can set different filters as well as the LED ring’s behavior. The LED of the currently active function blinks. Click the different filters above to find out more about them! High Filter The High-Shelf Filter helps you adjust frequencies above 3kHz in 0.5dB increments. You may need it in the following situations: Distance from Speakers: High frequencies weaken as you move further from the speakers. If you sit far from the speakers, boost the high frequencies. If you're close, like in a desktop setup (about 1 meter or 3 feet away), you might need to reduce the high frequencies. Room Acoustics: In a room with few reflective surfaces ("dead room"), boosting high frequencies can create a more balanced sound. Conversely, in a room with many reflective surfaces, reducing the high frequencies is advisable. Adjust the High Filter accordingly and achieve the best sound quality based on your listening position. A dB/Hz graph showing the impact of the High Filter Mid Filter The Mid Filter is a bell filter centered at 1kHz. It allows you to boost or cut the midrange by up to +/-3dB in 0.5dB increments. Here's what you should consider: Frequency Balance: The midrange is crucial for balancing lower and higher mid frequencies. Use the Mid Filter to fine-tune the balance between the fundamental and harmonic frequencies in your music. Room Acoustics: The acoustics of your room can affect how midrange frequencies are perceived. Sound energy from the monitors may reflect off surfaces like walls, floors, and ceilings, altering the sound. Adjust the Mid Filter to compensate for these reflections and achieve a balanced sound. The Mid filter is available on SC2070, SC3070, SC4070, SC3010 and SC3012. A dB/Hz graph showing the impact of the Mid Filter Desk Filter The desk filter allows you to boost or cut you low-mid frequencies in 0.5dB increments: Narrow-Band EQ: Depending on the model the filter is centered between 160 and 200Hz. When turned down, it reduces the low-mid boost often caused by reflections from mixers and similar surfaces. Decrease the filter gain to lessen this effect. EQ at 80Hz: When turned up, it enhances the lower frequencies, giving more punch to the sound. A dB/Hz graph showing the impact of the Desk Filter Low Filter The Low-Shelf Filter allows you to boost or attenuate frequencies below 300Hz in 0.5dB steps. Here's when to use it: Attenuating Low Frequencies: If your room's acoustics cause a boost in low frequencies (due to room modes or speakers being close to walls), you can reduce them with the Low-Shelf Filter. Boosting Low Frequencies: If the low frequencies are too weak, you can enhance them to achieve a balanced frequency response. Adjust the Low-Shelf Filter accordingly to address any issues in the low frequency range caused by your room's acoustics. A dB/Hz graph showing the impact of the Low Filter LED The LED Mode determines how the LED ring displays the volume level. There are four available modes: Bright Ring: All LEDs up to the selected volume level light up brightly. As the signal gets louder, he brightly lit ring extends. Bright Point: Only the LED corresponding to the selected volume level lights up brightly. As the signal gets louder, the brightly lit point moves further up. Dim Ring: All LEDs up to the selected volume level light up dimly. As the signal gets louder, the dimly lit ring extends. The LEDs light up brightly momentarily when you adjust the volume. Dim Point: Only the LED corresponding to the selected volume level lights up dimly. As the signal gets louder, the dimly lit point moves further up. In all modes, the LEDs indicate volume levels, adjusting in four steps. Intermediate steps are shown by the brightness level between two adjacent LEDs Technical Specs All facts and figures in detail Dimensions 435x650x490 17.1x25.6x19.3 inches (WxHxD) Frequency range 25 Hz - 21 kHz -3 dB at 1 m distance Sound pressure level 130 dB Max. SPL per pair Output power 1300 W Output power per speaker Woofer size 12" Diameter Cross-over frequency 220 & 1800 Hz Cross-over between drivers General Tweeter AMT RS6 Output power tweeter 250 W Mid-driver 5" Output power mid-driver 250 W Woofer 12" Output power woofer 800 W Protection limiter Yes Weight 44 kg (97 lb) Settings Volume - ∞ to + 6 dB High-shelf filter (-5 dB to +3 dB) > 3 kHz Mid EQ (-3 dB to +3 dB) 1 kHz Desk filter cut (-5 dB to 0 dB) 160 Hz Desk filter boost (0 dB to +3 dB) 80 Hz Low-shelf filter (-5 dB to +3 dB) < 300 Hz Adjustable LED brightness Yes Level-lock dip switch Yes Filter-lock dip switch Yes Input level dip switch +7 dBu / +22 dBu Connectors (10k impedance) RCA in XLR in Power consumption Standby < 1 W Maximum 1000 VA
