Metric Halo ULN-R Mic Pre 1-8 Upgrade kit for LIO-8

Metric Halo

** Ikke på lager
3% Rabatt
14.994,-
14.494,-
Vennligst velg

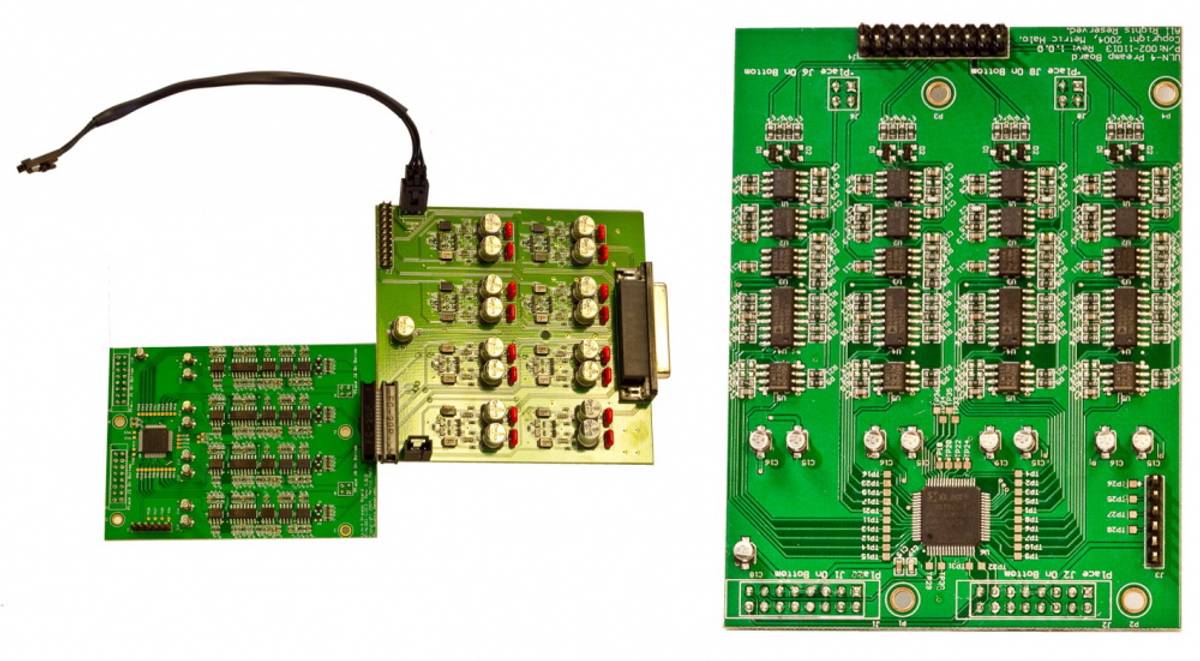

Metric Halo ULN-R 8 Channel Mic Preamp Option for LIO-8

This Kit adds channels 1-8 of ULN-R preamps to a LIO-8 that has an 8 channel DB-25 Input connector board already installed(Channel 5 - 8 ULN-R Preamp Kit requires installed Connector Board )

The ULN-R from Metric Halo is a convenient option that allows you to add 4 channels of microphone preamplification to your LIO-8. This fits into Metric Halo's "Future Proof" design philosophy. Users can purchase a LIO-8 for conversion and processing features and later on add 1 or 2 ULN-R units to add up to 8 channels of mic pres, without having to buy an entirely new system or get rid of your old one.

The ULN-R mic pre offers high gain, low noise, excellent common mode and RFI rejection, a flat frequency response, and low distortion. This ULN-R Kit adds 8 Channels of your LIO-8. It can handle dynamic mics, phantom powered mics, ribbon mics, turntables, instruments, and line-level signals with equal ease and quality.

Adds 8 channels of ULN-R  microphone preamplification to your LIO-8 converter/processor

"Future Proof" design philosophy lets you easily add features to your equipment instead of replacing it

This Kit adds channels 5-8 of ULN-R preamps to a LIO-8 that has an 8 channel DB-25 Input connector board already installed

These are the same preamps as used in the ULN-8.



Mic Pre Input + ADC
Input Impedance 3.3 kΩ
Dynamic Range (-60 dB, flat 0-22.05 kHz, typ) 115 dB
Dynamic Range (-60 dB, A-weighted, typ) 118 dB
Noise Floor (flat 0-22.05 kHz, typ) 115 dB
Noise Floor (A-weighted, typ) 117.9 dB
Gain Range -22 dB to +91.5 dB
Gain Precision �0.05 dB
Gain Step 0.5 dB
THD D/A/A/D loop @ -12 dBFS 0.0007 %
THD D/A/A/D loop @ -12 dBFS +12 dB Gain 0.0015 %
THD D/A/A/D loop @ -0 dBFS 0.0023 %
Crosstalk @ 1kHz -110dB
IMD 1k component (19 kHz/20kHz @ +8dBu) -104 dBu
EIN @ 60 dB Gain (150Ω Source Impedance) -130.50 dBu
EIN @ 60 dB Gain (0Ω Source Impedance) -133.25 dBu
Analog Send Calibration (ADC = 0 dBFS) +21.5 dBu
Phantom Power (Switchable Per Channel) +48 Volts
Mic Pre + ADC Frequency Response
+0/-0.1dB @ fs = 44100 Hz 8.9 Hz - 20.5 kHz
+0/-1.0dB @ fs = 44100 Hz 2.9 Hz - 21.0 kHz
+0/-0.1dB @ fs = 96000 Hz 8.9 Hz - 43.9 kHz
+0/-1.0dB @ fs = 96000 Hz 2.9 Hz - 45.4 kHz
+0/-0.1dB @ fs = 192000 Hz 8.9 Hz - 42.1 kHz
+0/-1.0dB @ fs = 192000 Hz 2.9 Hz - 64.7 kHz
5� low-end in-channel phase deviation point 20.0 Hz
Interchannel phase 0 Hz - 20 kHz < �0.05�
Crosstalk from SMPTE Input < -142 dB



In the Box

  • Metric Halo 8 Channel ULN-R Mic Preamp Option for LIO-8
