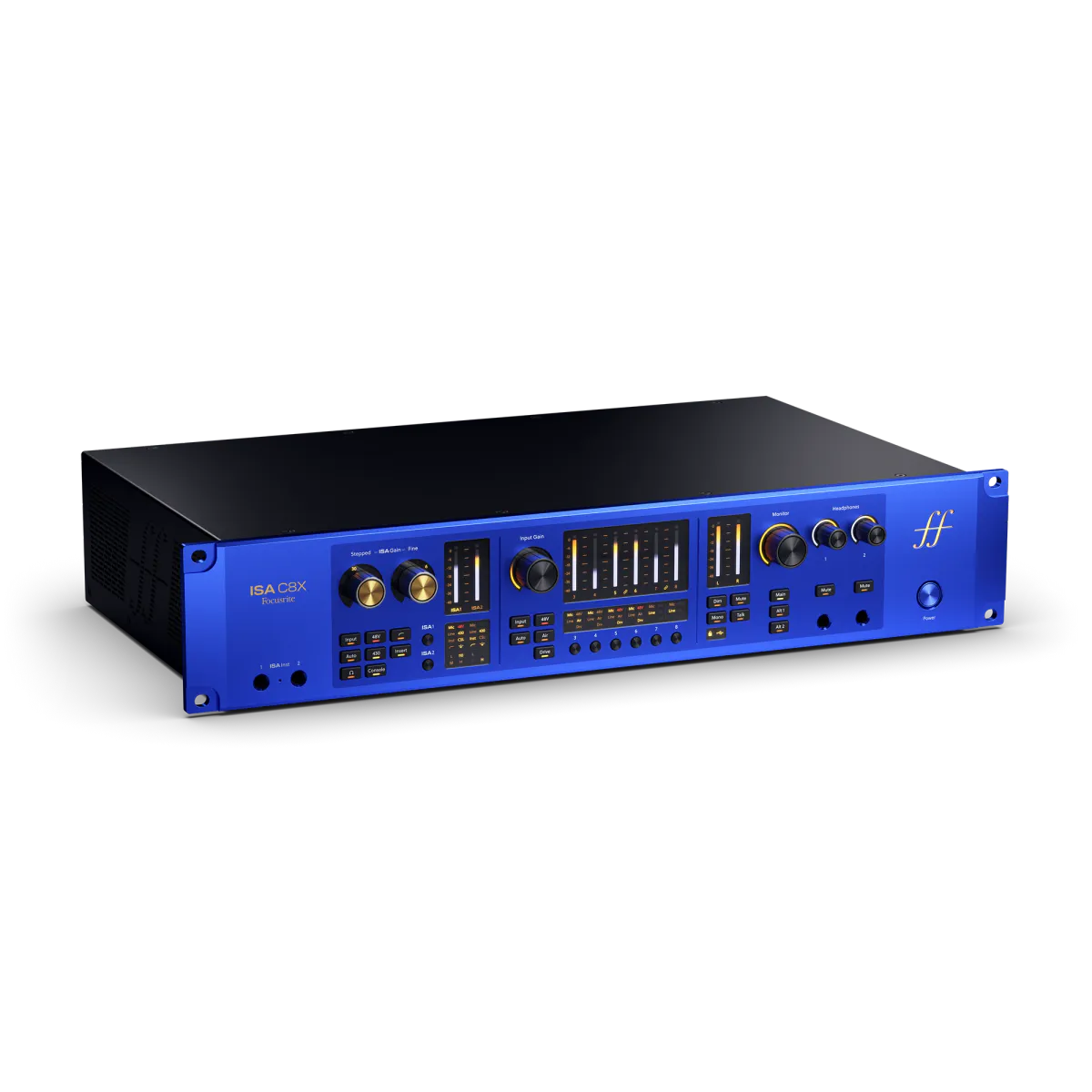

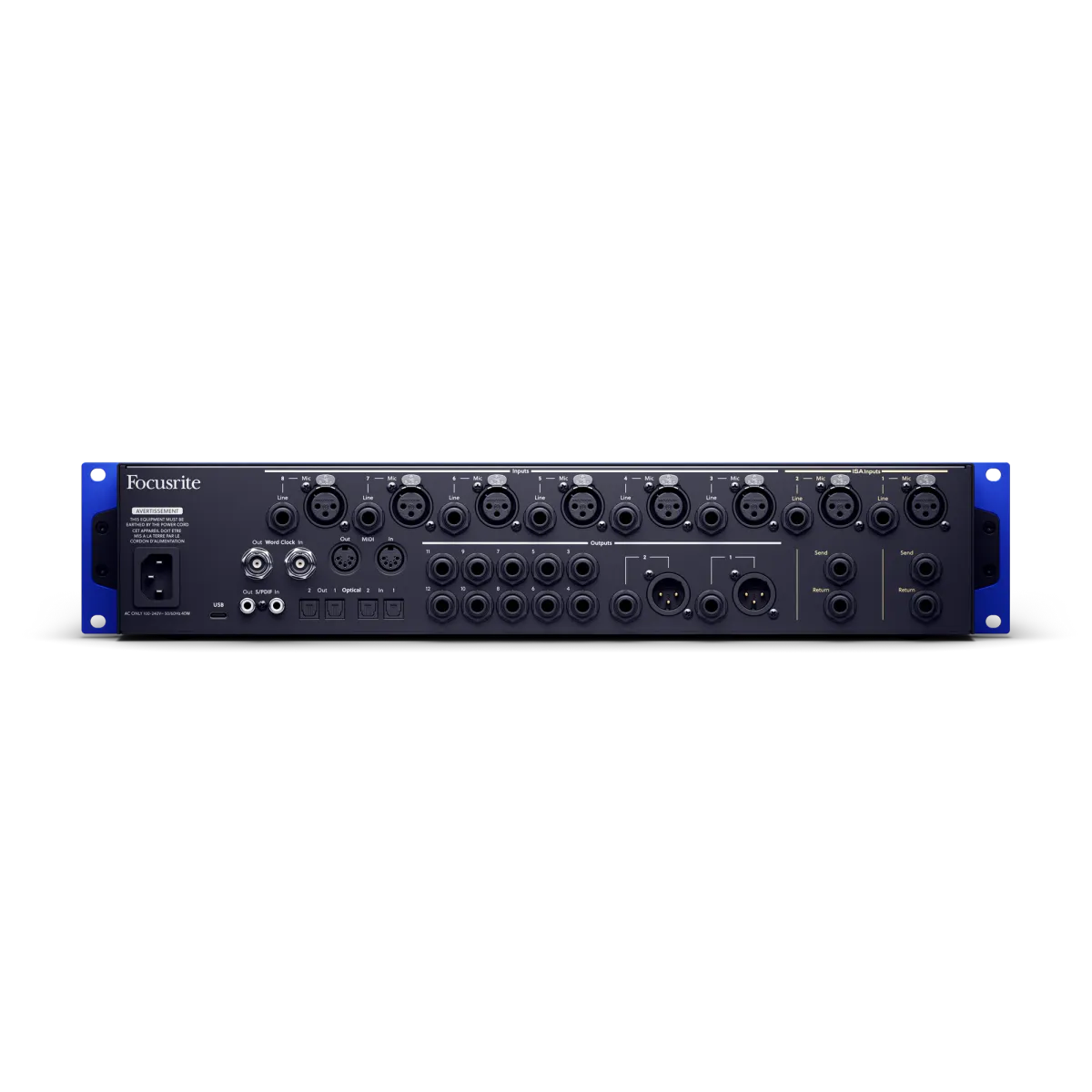

ISA C8X combines the trademark ISA sound with comprehensive remote control and all the analogue and digital I/O, routing, and recallability you need to run your entire studio, plus switchable impedance, balanced inserts, and high-pass filtering. The first two channels feature ISA preamps with classic Lundahl LL1538 transformers and Console and 430 Air modes for new tonal options. All eight are fully controllable from the front panel and via Focusrite Control 2.
- 2U rack-mounted, 26-in/28-out USB-C audio interface
- Eight remote-controlled preamps with up to 79dB of gain, two of which are ISA preamps with Lundahl LL1538 transformers
- All-analogue Console and 430 Air modes for tonal shaping
- 24-bit/192kHz AD/DA conversion with up to 125dB of dynamic range
- Additional Sonnox bundles available
Specifications
Hardware Overview
- Microphone Preamps8
- Phantom PowerYes (Independent per-channel)
- Line Inputs8
- Instrument Inputs2
- Insert Sends2
- Insert Returns2
- Line Outputs12
- Headphone Outputs2
- Line Outputs10
- Headphone Outputs2
- ADAT Inputs2 (16 channels at 44.1/48kHz and up to 8 channels at 96kHz)
- ADAT Outputs2 (16 channels at 44.1/48kHz and up to 8 channels at 96kHz)
- SPDIF Input1 (2 channels at 96kHz)
- SPDIF Output1 (2 channels at 96kHz)
- MIDI Input1
- MIDI Output1
- Word Clock Input1
- Word Clock Output1
- TalkbackYes
- LoopbackYes
- ConnectivityUSB Type-C
- ProtocolUSB 2.0
- Form FactorRack Mountable (2U)
- Simultaneous I/O26x28 (including Loopback)
- A/D Resolution24-bit/192 kHz
- Maximum Power Draw40W
- Bus PoweredN
ISA Microphone Inputs (Channels 1-2)
- Frequency Response20Hz-20kHz (±0.4dB)
- Dynamic Range (A-weighted)117dB
- THD+N (minimum at minimum gain)-93dB (0.00023%)
- Noise EIN (A-Weighted)-128dB
- Maximum Input Level (minimum gain, Low impedance)+16dBu
- Gain Range79dB
- Input Impedance (switchable)800Ω (Low), 1400Ω (ISA 110), 2400Ω (Med), 7000Ω (High)
- High Pass Filter (HPF)75Hz cut-off frequency, 18dB/Octave
Microphone Inputs (Channels 3-8)
- Frequency Response20Hz-20kHz (±0.1dB)
- Dynamic Range (A-weighted)116dB
- THD+N (minimum at 8dB Gain)-100dB (0.001%)
- Noise EIN (A-Weighted)-127dB
- Maximum Input Level (minimum gain)+16dBu
- Gain Range69dB
- Input Impedance3200Ω
Fixed-level Line Inputs (Channels 1-8)
- Frequency Response20Hz-20kHz (±0.05dB)
- Dynamic Range (A-weighted)120dB
- THD+N (minimum)< -105dB (0.00056%)
- Maximum Input Level+24dBu
https://focusrite.com/products/isa-c8x
