The EXO 27 is the powerful all-rounder of the EXO Series – designed for those who won’t settle for anything less than uncompromising sound quality.
The go-to solution for demanding producers, audio engineers, and professional control rooms—wherever powerful output, uncompromisingly linear sound, and rock-solid reliability are non-negotiable. Thanks to its precise directivity, the EXO 27 is also perfectly suited for immersive formats like Dolby Atmos and other multi-channel applications. To simplify mounting, the EXO 27 is equipped with four M6 threaded mounting points on the bottom side of the enclosure.
Hear Every Detail
The EXO Series sets new standards in audio technology. The innovative Precision AirMotion Tweeter combined with an advanced GDC Waveguide ensures an ultra-wide sweet spot, perfect stereo imaging and a homogenous dispersion. The deep bass is precise and controlled, and this with great accuracy over the extended frequency range.
Committed to Sonic Precision
The acoustic design of the EXO 27 is carefully crafted to achieve exceptional sound performance.
EXO 27 combines the EXO Precision AirMotion Tweeter with the GDC Waveguide (Guided Directivity Control) to ensure controlled, wide dispersion. The result is a precise stereo image with stable localization across the entire frequency range. This improves stereo imaging and spatial coherence in setups like Dolby Atmos. Constructed from ultra-lightweight polyamide, the AMT delivers rapid transient response, exceptional efficiency, and accurate high-frequency reproduction with minimal distortion.
The larger 6.5" CAL woofer (Coated Aluminium) delivers deep, punchy bass while maintaining clarity in the mids – perfect for detailed mixes that need to translate well to larger systems. The lightweight aluminum woofer cone, featuring a resonance-damped dust cap and an optimized magnet system, guarantees precise and dynamic playback with minimal distortion.
The specially shaped and airflow-optimized LDE enclosure (Low Diffraction Enclosure) with rounded edges minimizes unwanted reflections and supports smooth sound dispersion. Its curved design with smooth, rounded edges reduces sound diffraction, resulting in a cleaner and more accurate listening experience. The enhanced rear-facing bass reflex ports, with optimized aerodynamics, allow for deeper low-end extension while minimizing port noise.

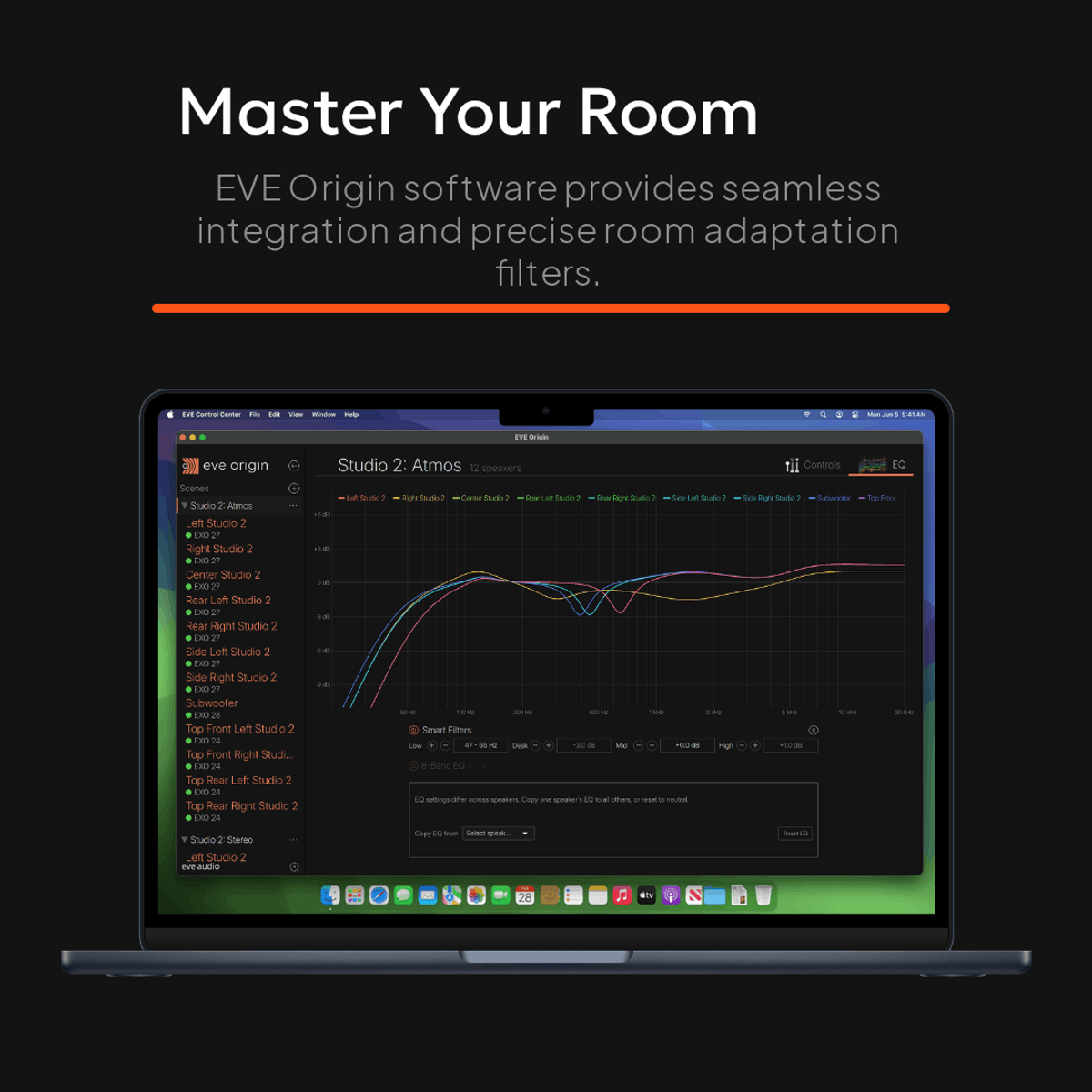

EVE Origin - Smarter Monitoring just a tap away.
The sound of your system at the palm of your hand
Perfect the sound of your multi-channel system without leaving the comfort of your listening position. Make use of filters, EQs, delay and more all within EVE Origin.
EVE Origin gives you more control over your room - in real time. You can adjust the monitors individually to your room, make the finest settings and optimize the perfect sound for your production. Especially with immersive setups such as Dolby Atmos, the software guarantees precise placement of the sound sources.
Effortless Control and Instant Feedback
The rear-mounted OLED display, paired with the integrated SMART Control Knob, ensures an intuitive and user-friendly interface.
All essential system parameters are clearly visible, while the SMART Control Knob allows precise adjustments for settings like output level, room adaptation filters, and input source selection. The EXO 27 offers effortless access to software control, precise calibration, and future-proof firmware updates, enabling real-time adjustments directly on the monitor without interrupting your workflow.
The illuminated ‘eve audio’ logo on the front panel functions as a multi-color status indicator, delivering instant feedback on operating conditions such as overload protection, firmware updates, and other system statuses. In normal operation, the logo glows warm white, signaling that the system is functioning optimally and ready for high-fidelity audio reproduction or critical monitoring. The logo’s brightness can be adjusted to your personal preference.
Technical Data
General information
Dimensions (mm)
234x344x280
Dimensions (inch)
9.2x13.5x11
Weight
8,1 kg (17.9 lb)
Output power per speaker
280 W
Tweeter
Model
Precision AirMotion Tweeter (PAMT)
Waveguide Technology
Guided Directivity Control (GDC)
Output power
140 W / 1%
Woofer
Woofer diameter
6.5"
Diaphragm material
Coated aluminum
Woofer voice coil
Air Stream Optimized Voice Coil Design
Output power
140 W / 1%
Acoustics
Frequency range (- 3 dB at 1 m full space)
41 Hz - 24 kHz
Max. SPL (full space) > 100 Hz
116 dB
Max. SPL (half space) > 100 Hz
122 dB
Cross-over frequency
2200 Hz
Free-field frequency response (on axis)
Features
Protection Limiter
Yes
Wake-on-LAN
Yes
Wake-on-Signal
Yes
Automatic Standby Mode
Yes (Adjustable)
Status LED
Yes (Shows 8 different states, e.g. Signal overload)
Mounting Point
Bottom side M6 Mounting hole pattern of 50.8x107.9 mm (Fits K&M 24352 and K&M 24354)
User Interface (Filter and settings access)
Rear OLED display with SMART Control Knob
Adjustable Settings
Volume
-∞to +10 dB
High-Shelf Filter (-5 dB to +3 dB)
> 3 kHz
Mid EQ (-3 dB to +3 dB)
2,6 kHz
Desk Filter Cut (-5 dB to 0 dB)
470 Hz
Low-Shelf Filter (-5 dB to +3 dB)
< 300 Hz
Max. Input Level
-10 dBV (max. 16.5 dBu) / +4 dBu (max. 20 dBu)
Input select
Balanced, Unbalanced, S/PDIF L/R/Mono
LED Brightness
Continuously dimmable from 0% to 100%
IP-Adress Configuration
Manual/Automatic (DHCP)
Standby Mode
15 min / 30 min / 60 min / off
Connections
Balanced XLR
Analog signal input
Unbalanced RCA In
Analog signal input
S/PDIF digital
Coaxial in-/output (96 kHz / 24-bit)
LAN
Ethernet and software access
Power consumption
Standby
< 1 W
Idle Power Consumption
7 W
Peak Power Consumption
400 W
