Active 2-way Studio Monitor
EXO 25
Future-ready sound for professionals
The EXO 25 is the ideal nearfield monitor for those who want to combine ultimate precision with tangible depth.
The perfect choice for professional studios, ambitious producers, and anyone who values not only sonic accuracy but also high performance – with no compromises. Thanks to its controlled dispersion characteristics, the EXO 25 is also ideally suited for immersive formats such as Dolby Atmos. To simplify mounting, the EXO 25 is equipped with four M6 threaded mounting points on the bottom side of the enclosure.
Advanced monitoring for precise audio reproduction
Hear Every Detail
The EXO Series sets new standards in audio technology. The innovative Precision AirMotion Tweeter combined with an advanced GDC Waveguide ensures an ultra-wide sweet spot, perfect stereo imaging and a homogenous dispersion. The deep bass is precise and controlled, and this with great accuracy over the extended frequency range.
Built for Acoustic Clarity
Every component of the EXO 25 is engineered to deliver uncompromising audio precision, depth, and clarity - down to the finest acoustic detail.
The EXO Precision AirMotion Tweeter, combined with the GDC Waveguide, provides wider, more consistent dispersion and a larger sweet spot. This enhances stereo imaging and spatial integration in setups like Dolby Atmos. Made from ultra-lightweight polyamide, the AMT ensures fast transient response, high efficiency, and precise high-frequency reproduction with minimal distortion.
The powerful 5" woofer with a CAL diaphragm (Coated Aluminium) provides accurate reproduction with noticeable depth and high transparency, even with complex audio material. The lightweight aluminium woofer cone – including a resonance-dampened dust cap and a redesigned magnet system – ensures precise, dynamic playback with minimal distortion.
The system is housed in an airflow-optimized LDE (Low Diffraction Enclosure), meticulously engineered for acoustic performance. Its curved design with smooth, rounded edges minimizes sound diffraction, ensuring a cleaner and more precise listening experience. Enhanced rear-facing bass reflex ports, featuring improved aerodynamics, enable deeper low-frequency extension while significantly reducing port noise.
The sound of your system at the palm of your hand
Perfect the sound of your multi-channel system without leaving the comfort of your listening position. Make use of filters, EQs, delay and more all within EVE Origin.

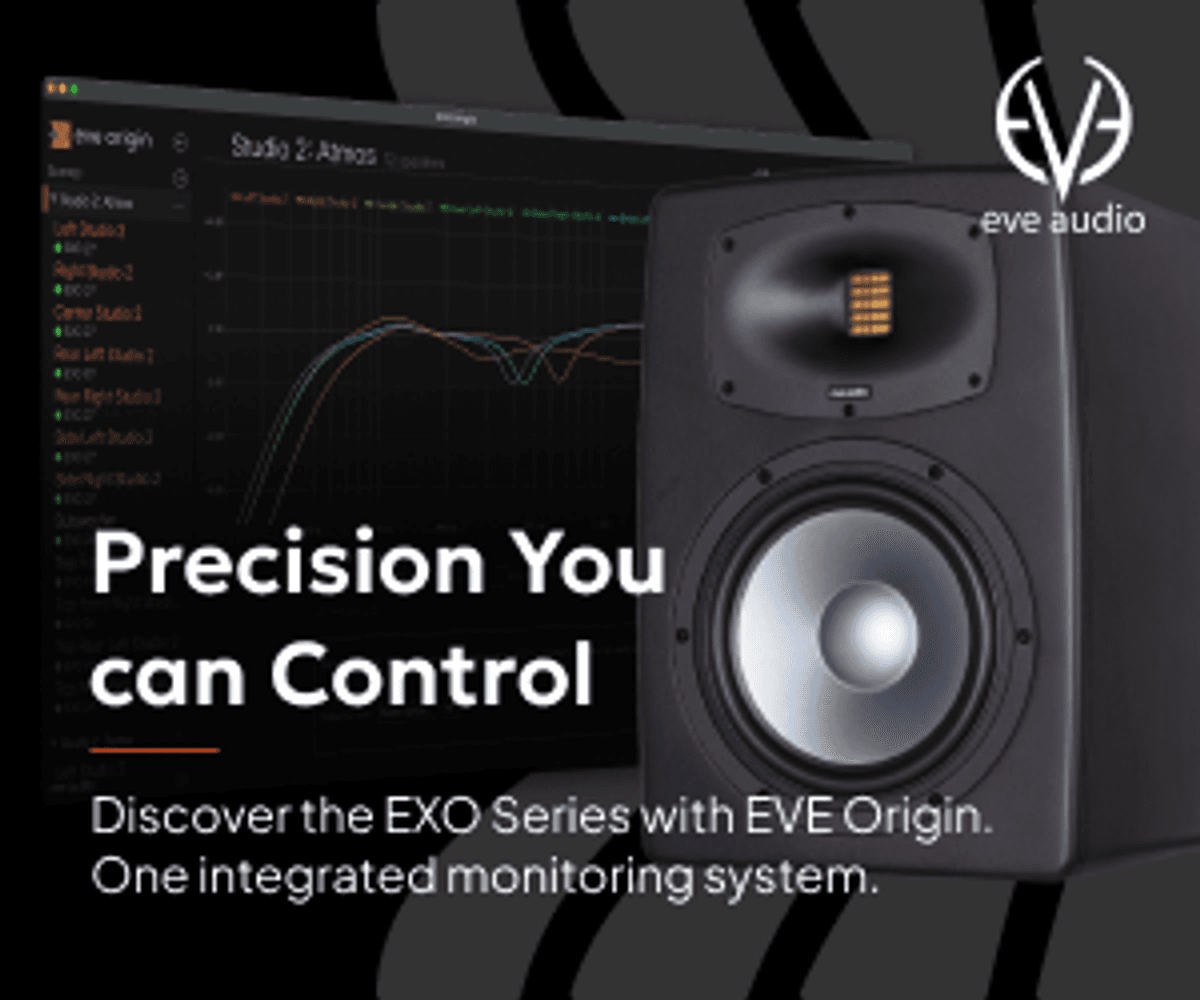

EVE Origin - Smarter Monitoring just a tap away.

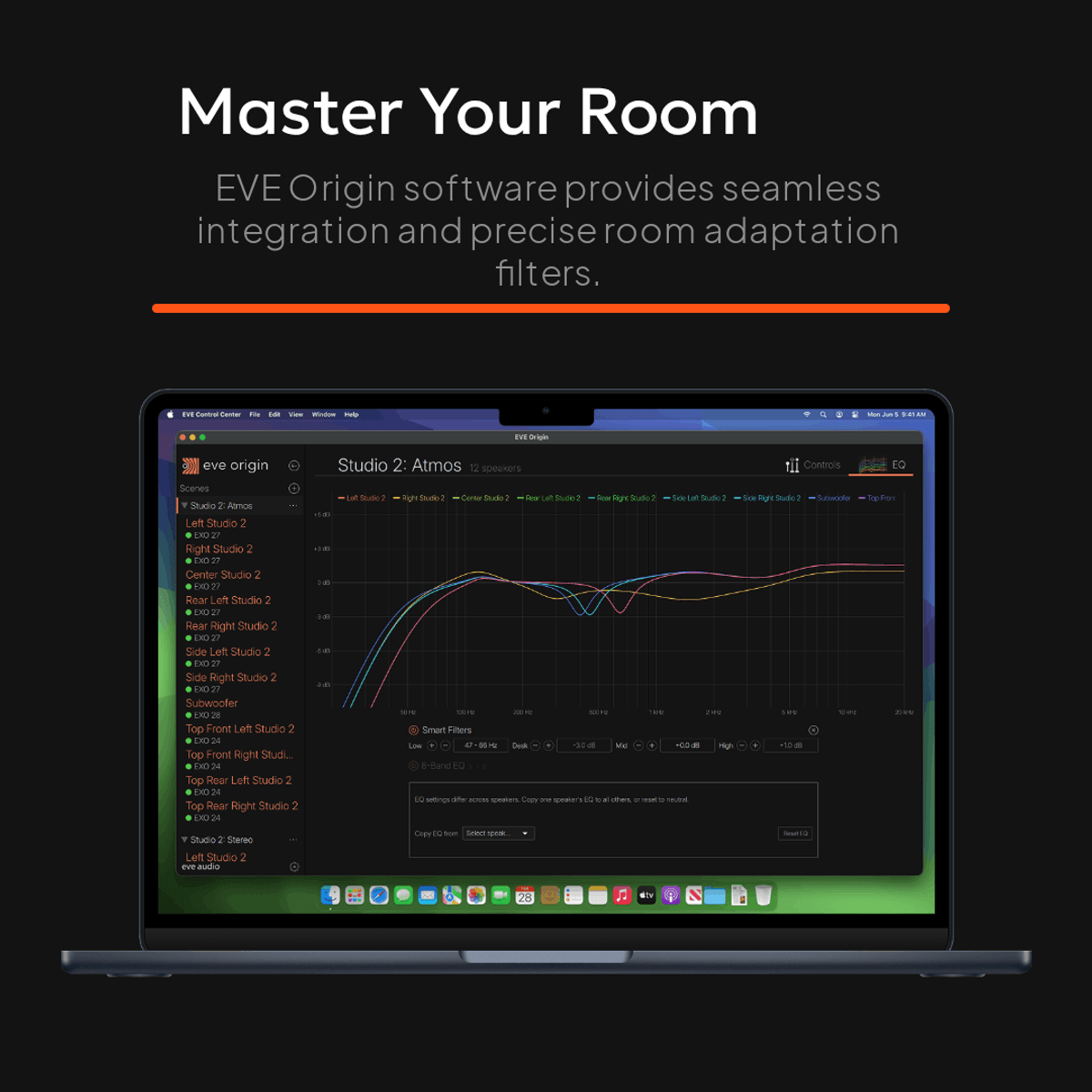

EVE Origin gives you more control over your room - in real time. You can adjust the monitors individually to your room, make the finest settings and optimize the perfect sound for your production. Especially with immersive setups such as Dolby Atmos, the software guarantees precise placement of the sound sources.
Intuitive Control and Real-Time Feedback
A rear-mounted OLED display combined with an integrated SMART Control Knob enables highly intuitive and user-friendly operation.
All key system parameters are clearly displayed, with the SMART Control Knob offering precise control over settings such as output level, room adaptation filters, and input source selection. EXO 25 enables seamless access to software control, accurate calibration, and future-proof firmware updates, allowing real-time adjustments directly on the monitor without disrupting your workflow.
The illuminated ‘eve audio’ logo on the front panel serves as a multi-color status indicator, providing instant feedback on operating conditions, including overload protection, firmware update progress, and other system statuses. In normal operation, the logo emits a warm white glow, signaling optimal system performance and readiness for high-fidelity audio reproduction or critical monitoring tasks. You can also adjust the logo’s brightness to match your personal preferences.
Technical Data
General information
Dimensions (mm)
195x284x230
Dimensions (inch)
7.6x11.2x9.1
Weight
5,35 kg (11.8 lb)
Output power per speaker
280 W
Tweeter
Model
Precision AirMotion Tweeter (PAMT)
Waveguide Technology
Guided Directivity Control (GDC)
Output power
140 W / 1%
Woofer
Woofer diameter
5"
Diaphragm material
Coated aluminum
Woofer voice coil
Air Stream Optimized Voice Coil Design
Output power
140 W / 1%
Acoustics
Frequency range (- 3 dB at 1 m full space)
44 Hz - 24 kHz
Max. SPL (full space) > 100 Hz
110 dB
Max. SPL (half space) > 100 Hz
116 dB
Cross-over frequency
2200 Hz
Free-field frequency response (on axis)
Features
Protection Limiter
Yes
Wake-on-LAN
Yes
Wake-on-Signal
Yes
Automatic Standby Mode
Yes (Adjustable)
Status LED
Yes (Shows 8 different states, e.g. Signal overload)
Mounting Point
Bottom side M6 Mounting hole pattern of 50.8x107.9 mm (Fits K&M 24352 and K&M 24354)
User Interface (Filter and settings access)
Rear OLED display with SMART Control Knob
Adjustable Settings
Volume
-∞to +10 dB
High-Shelf Filter (-5 dB to +3 dB)
> 3 kHz
Mid EQ (-3 dB to +3 dB)
3,2 kHz
Desk Filter Cut (-5 dB to 0 dB)
550 Hz
Low-Shelf Filter (-5 dB to +3 dB)
< 300 Hz
Max. Input Level
-10 dBV (max. 16.5 dBu) / +4 dBu (max. 20 dBu)
Input select
Balanced, Unbalanced, S/PDIF L/R/Mono
LED Brightness
Continuously dimmable from 0% to 100%
IP-Adress Configuration
Manual/Automatic (DHCP)
Standby Mode
15 min / 30 min / 60 min / off
Connections
Balanced XLR
Analog signal input
Unbalanced RCA In
Analog signal input
S/PDIF digital
Coaxial in-/output (96 kHz / 24-bit)
LAN
Ethernet and software access
Power consumption
Standby
< 1 W
Idle Power Consumption
7 W
Peak Power Consumption
400 W
