Allen & Heaths legendariske digitalmikser er gjenfødt, superladet med en 96kHz XCVI-kjerne for DEEP-prosessering, økt kanalkapasitet med fullt fleksibel patching over 4 tilpassbare lag, et fullstendig redesignet brukergrensesnitt, betydelige maskinvareoppgraderinger, pluss utvidet tilkobling og valgfri Dante.

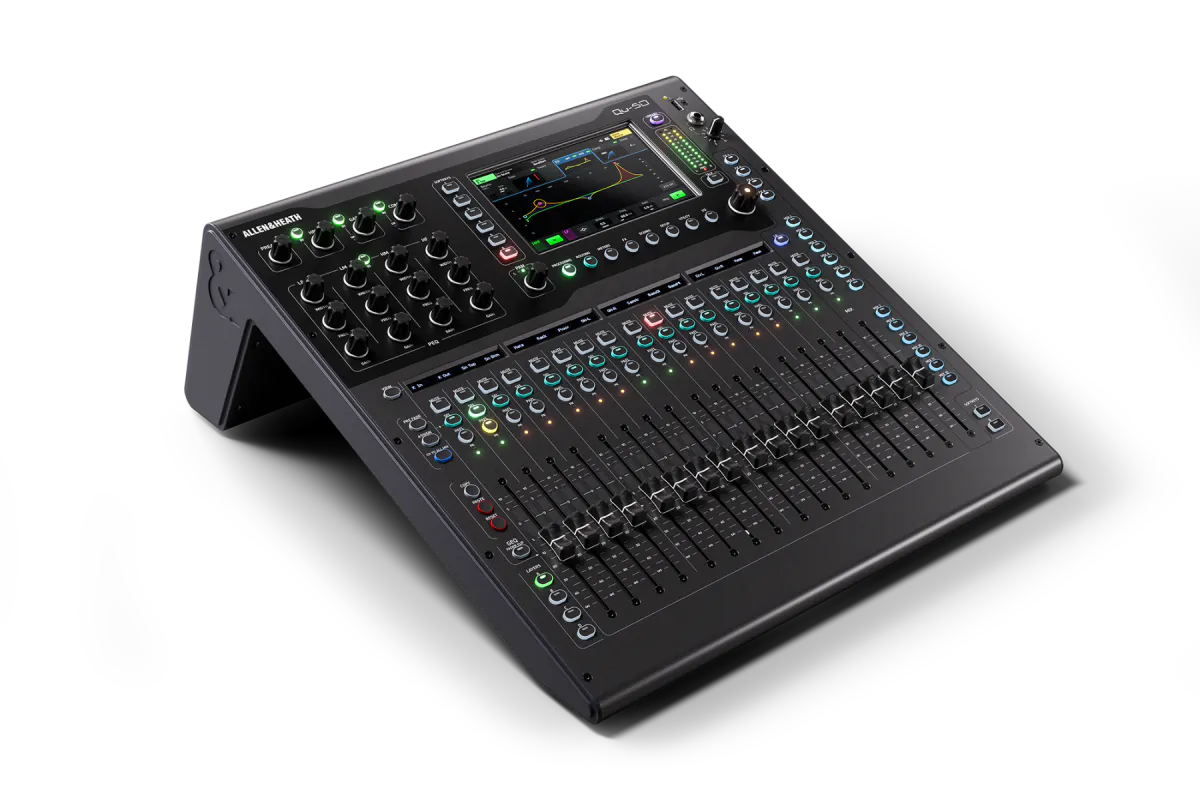

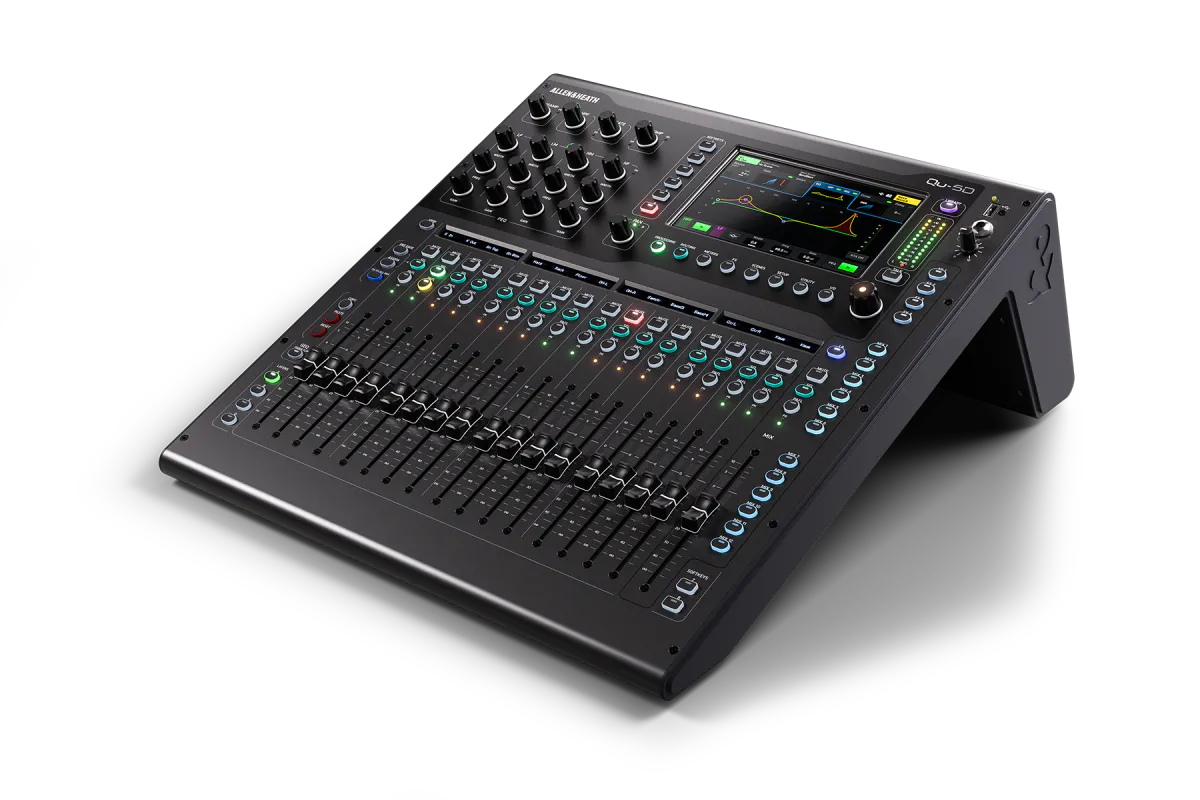

Qu-5D
Kompakt 38in/24out 96kHz mikser med Dante
17 100mm motoriserte fadere
16 XLR/Jack ‘Combi’ Mic/Line inngangsplugger
12 XLR utgangsplugger
19” Rackmonterbar (valgfritt kit tilgjengelig)
16×16 48/96 kHz Dante-grensesnitt med dedikert låsbar EtherCon-port
- 96kHz FPGA-kjerne
- 36x innganger til miks (32x mono/lenkbare, 2x stereo)
- Stereo Main LR-utgang
- 12x mikser (6x mono/lenkbare Aux, 6x stereo Aux/Group)
- 4x matriseutganger (mono/lenkbare)
- 16x XLR/Jack ‘Combi’ mikrofon/linje-innganger
- 2x stereo linje-innganger (hver med 2x TRS)
- 1x talkback-inngang
- 12x XLR-utganger
- 2x TRS-utganger
- 1x AES3 stereo digitalutgang
- 128x128 intelligent SLink-port for Everything I/O-utvidelse og systemtilkoblinger
- Stereo hodetelefonutgang
- 6x Multi-FX-motorer med dedikerte returkanaler
- 7” kapasitiv berøringsskjerm
- 17x 100mm motoriserte fadere
- 4x kanallistelag
- 8x SoftKeys
- USB-A for stereo lydopptak/-avspilling og dataoverføring
- USB-C lydgrensesnitt for multikanalsopptak/-avspilling (32x32)
- SD-kortspor for multikanals lydopptak/-avspilling (16x16@96kHz, 32x32@48kHz)
- 12V lampetilkobling
- Konfigurerbar enkel/dobbel fotbryteringang
- Konfigurerbare kromatiske kanalmeters-LED-er
- 19” rackmonterbar (valgfritt sett tilgjengelig)
- IEC-strømtilkobling med global strømforsyning
- RJ45 nettverkskontakt
- Fjernstyring via gratisapper – Windows/MacOS/iOS/Android
| Inputs Mic/Line Inputs | Balanced Combi XLR/Jack, fully recallable preamp |
| Input Sensitivity | -60 to +0dBu |
| TRS Inputs | -20dB Pad (Fixed) |
| Preamp Gain | 0dB to +60dB, 1dB steps |
| Maximum Input Level (XLR/Jack) | +16dBu Mic input / +30dBu TRS pad input |
| Input Impedance | >1.5kΩ MIC / >20kΩ TRS |
| THD+N, Unity gain 0dB | 0.002% -92dB (20Hz-20kHz, AES Direct Out, @0dBu 1kHz) |
| THD+N, Mid gain +30dB | 0.004% -88dB (20Hz-20kHz, AES Direct Out, @-30dBu 1kHz) |
| Phantom Power | +48V (+3V / -2V) |
| Stereo Line Inputs | Balanced, 2x 1/4" TRS jack |
| Input Sensitivity Nominal | +4dBu |
| Trim | +/-24dB |
| Maximum Input Level | +21dBu |
| Input Impedance | >6kΩ |
| Outputs XLR Outputs | Balanced, XLR |
| Outputs A and B | Balanced 1/4" TRS Jack |
| Source | Fully patchable |
| Output Impedance | <75Ω |
| Nominal Output | +4dBu = 0dB meter reading |
| Maximum Output Level | +22dBu |
| Residual Output Noise | -88dBu (muted, 20Hz-20kHz) |
| AES Digital Output | Balanced XLR 2 channel, 96kHz sampling rate (Default with SRC Bypassed) Switchable output sample rates, 44.1/48/88.2/96kHz 2.5Vpp balanced terminated 110Ω |
| SLink Connection | Neutrik EtherCON (RJ45) dSnake mode 40 input, 20+40(ME) output channels, 48kHz DX mode 32 input, 32 output channels, 96kHz GigaACE/GX 128 input, 128 output channels, 96kHz Inputs Fully patchable Outputs Fully patchable Sync/SRC Assignable as audio clock source, 48kHz<>96kHz SRC |
| Dante (Qu-5D only) | 16 input, 16 output channels, 48/96kHz operation Inputs Fully patchable Outputs Fully patchable Sync/SRC Assignable as audio clock source, 48kHz<>96kHz SRC |
| USB Audio Qu-Drive | USB-A or SD Card, recording or playback Stereo Record (USB-A) 2 channel, WAV, 48/96kHz, 24-bit, fully patchable Stereo Playback (USB-A) 1/2 channel, WAV, 44.1/48/96kHz 16/24-bit, fully patchable Multitrack Record (SDHC) 16 channels 96kHz, 32 channels 48kHz, 24-bit, WAV, fully patchable Multitrack Playback (SDHC) 16 channels 96kHz, 32 channels 48kHz, 24-bit, WAV, fully patchable SD Card SDHC, 32GB, UHS-I, Class 10 for maximum channels, 48/96 kHz, 24-bit |
| USB Audio Streaming | USB-C connection, USB 2.0 Core Audio compliant, ASIO/WDM for Windows Send (upstream) 32 channels, 48/96kHz, 24-bit Return (downstream) 32 channels, 48/96kHz, 24-bit |
| Control Touch Screen | 7" Capacitive, 800 x 480 resolution, 24-bit RGB |
| SoftKeys | 8 |
| Mute Groups / DCA Groups | 8 / 8 |
| Network | TCP/IP Ethernet for Control and MIDI |
| MIDI | USB-C and TCP/IP |
| Footswitch | Single or Dual, Momentary or Latching |
| System | 38 input, 28 bus, XCVI Core Measured balanced XLR in to XLR out, 0dB gain, 0dBu input |
| Dynamic Range | 110 dB |
| Frequency Response | +0/-0.5dB 20Hz to 20kHz |
| Headroom | +18dB |
| Internal operating Level | 0dBu |
| THD+N, Mic/Line routed to Main L/R Out | Unity gain, 0.005%, -87dB (20Hz-20kHz) |
| dBFS Alignment | +18dBu = 0dBFS (+22dBu at XLR output) |
| Meter Calibration | 0dB meter = -18dBFS (+4dBu at XLR out) |
| Main Meter Type | 2x 12 segment, fast (peak) response, follows PAFL |
| Channel Meter Type | Chromatic Channel Metering, fully programmable colour/brightness |
| Peak Indication | -3dBFS (+19dBu at XLR out), Multi-point sensing |
| Sampling Rate | 96kHz |
| Bit Depth | XCVI custom bit depths, up to 96-bit |
| Latency | <0.7ms, Local Mic Input to Main L/R |
| Operating Temperature Range | 0 deg C to 40 deg C (32 deg F to 104 deg F) |
| Mains Power | 100-240V AC, 50/60Hz |
| Max Power Consumption (Qu-5 / Qu-5D) | 70W / 75W |
| Input Source | Channels 1-32 Fully patchable ST1 / ST2 / USB Channels Fixed patch, ST1 / ST2 / USB1&2 USB Global Source Qu-Drive or USB-C Streaming (Auto Switching) |
| Polarity | Normal/Invert |
| Trim | -24 to +24dB |
| High Pass Filter | 12/18/24dB per octave 20Hz – 2kHz |
| Insert | Fully Patchable (Digital/Analogue/-10dBV level) |
| Delay | Up to 341ms |
| Gate | Patchable Sidechain |
| Sidechain filter | Hi-pass (20Hz-5kHz), band-pass (120Hz-10kHz, Q=1), Lo-pass (120Hz-20kHz) |
| Threshold / Depth | -72dBu to +18dBu / 0 to 60dB |
| Attack / Hold / Release | 50µs to 300ms / 10ms to 5s / 10ms to 1s |
| PEQ | 4-Band fully parametric, 20Hz-20kHz, +/-15dB Band 1, Band 4 Selectable Shelving (Baxandall), Bell, HPF/LPF 12dB/octave Band 2, Band 3 Bell Bell Width Variable, 1.5 Q to 1/9th octave |
| Compressor | Patchable Sidechain, Ducker mode, DEEP options, +18dB Makeup gain Sidechain filter Hi-pass (20Hz-5kHz), band-pass (120Hz-10kHz, Q=1), Lo-pass (120-20kHz) Threshold / Ratio -46dBu to 18dBu / 1:1 to infinity Attack / Release 30µs to 300ms / 50ms to 2s Knee Soft/Hard Detector response Peak/RMS switchable Parallel Path Compression dry/wet -inf to 0dB |
| Channel Direct Out | Follow Fader/Mute/Mute Group/DCA (Global) Direct Out Source Post-Preamp, Post-HPF, Post-Gate, Insert Return, Post-PEQ, PostComp, Post-Delay Direct Out Level trim -inf to 10dB (per channel) |
| Mix Insert | Fully Patchable (Digital/Analogue/-10dBV level) Processing Delay Up to 682ms |
| Feedback Assistant | Automatic feedback suppression, 16 filters per mix, 8 concurrent detectors Filter Cut 0dB to 18dB Automatic Filter Width 18 to 116 Q Manual Filter Width 6 to 640 Q |
| GEQ | 28 bands 31Hz-16kHz, +/-12dB Gain, Constant 1/3 oct, DEEP options |
| PEQ | As Input PEQ |
| Compressor | As Input Compressor |
| FX Internal FX | 6x FX engines, Send>Return (4 dedicated FX send) or Inserted (with Wet/Dry) Types SMR Reverb, Stereo Tap Delay, Gated Reverb, ADT, Blue Chorus Symphonic Chorus, Flanger, Phaser 6x Dedicated Stereo FX returns Fader, Pan, Mute, Routing to LR/Mix, 4-Band PEQ |
| Audio Tools | PAFL PFL or stereo in-place AFL, 0 to -24dB Trim, PAFL Delay Up to 682ms Talkback Dedicated input, Assignable to any mix, Preamp/Trim Control, 20Hz20kHz 12dB/oct HPF Signal Generator Assignable to any input or mix, Sine/White/Pink/Bandpass Noise RTA 2x 31-Band 1/3 oct (Stereo) or 61-Band 1/6 octave (Mono), 20Hz20kHz AMM Type 32 Channel, Gain Sharing Algorithm Sidechain Filter HPF / LPF 250Hz / 5kHz (12dB/octave) Priority -15dB to +15dB per channel |
| Dimensions Qu-5 / Qu-5D Width x Depth x Height & Weights | Unit only 440 x 476 x 213 mm (17.3" x 18.7" x 8.4") Packed in shipping box 570 x 640 x 310 mm (22.5" x 25.2" x 12.2") Unpacked weight 10 kg (22 lbs) Packed weight 12.6 kg (27.8 lb) |
