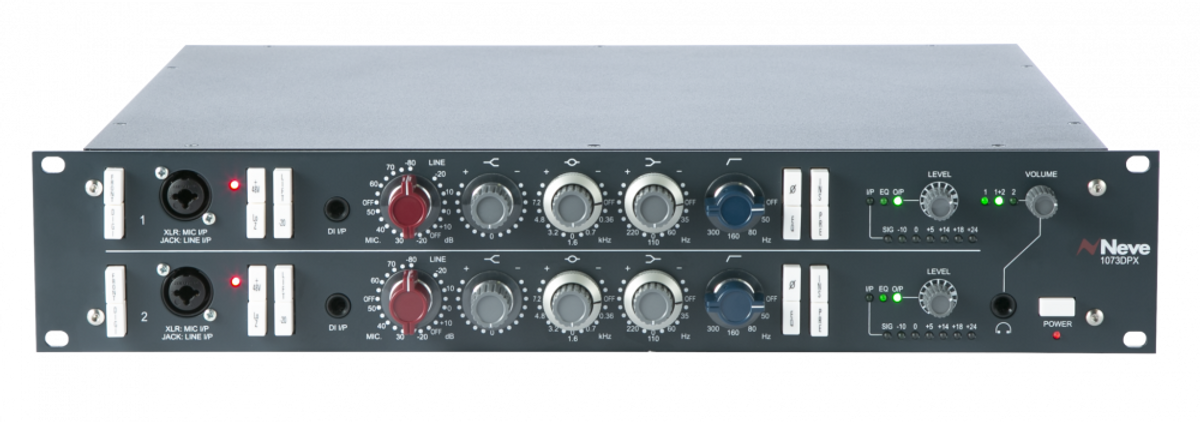

1073DPX
Twice the Neve Punch
The 1073DPX has two channels of 1073® Class A design microphone preamplifiers, each with 3-band EQ (fixed HF plus two switchable bands with cut/boost capability) and a high pass filter.
General Specification
- 2 independent, genuine 1073® transformer-coupled microphone preamplifier/EQ circuits, in a single 2U 19″ rack-mount enclosure
- Exclusive Neve® Marinair® transformers are used on each input and output stage.
- Convenient connections for Mic, Line & DI inputs on the front of the unit, with switchable mic/line input connections on the rear of the unit
- Switchable +48v Phantom Power, Hi/Lo impedance, -20dB pad and DI ground lift on the input stage
- Switchable Phase, and EQ in/out
- Insert send and return loop feature allows external equipment to be connected easily to the 1073DPX audio chain, such as mono/stereo limiter/compressors;
- Pre-EQ insert send/return – a line level send is available from the mic-preamp output stage and a return just before the EQ stage
- Post-EQ insert send/return – a line level send is available from the post-EQ stage and a return just before the main output stage
- Independent channel output level controls
- 7-stage LED signal level meters for each channel – can show mic/line/DI input-stage level, EQ-stage level or output-stage level up to +24dB
- Headphone output with adjustable volume control can listen to channel 1, channel 2 or both channels combined
- External multi-voltage PSU
- Optional Digital I/O module
- Power – 48Vdc, 480mA ±20mA excluding digital module. Negative Earth
Preamp Specification
- Microphone Input: Gain +80db to +20dB in 5dB steps.
- Line Input: Input impedance 10kΩ, gain +20dB to -10dB in 5dB steps
- DI Input: Input impedance 10M Ohms (PAD off) / 10K Ohms (PAD on) Gain +80dB to +20dB in 5dB steps.
EQ Specification
- High Frequency: Smooth +/-16dB fixed frequency shelving at 12kHz
- Low Frequency: Smooth +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
- Mid Frequency: Smooth +/-18dB peaking, fi xed ‘Q’ with selectable centre frequencies of 0.36kHz, 0.7kHz 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz
- High Pass Filter: 18dB per octave slope, switchable between 50Hz, 80Hz, 160Hz & 300Hz
Audio Performance
- Output: Maximum output is >+26dBu into 600Ω, transformer balanced and earth free. – Output Impedance 75Ω @1kHz
- Distortion: Not more than 0.07% from 50Hz to 10kHz at +20dBu output (80kHz bandwidth) into 600Ω.
- Freq Response: ±0.5dB 20Hz to 20kHz, -3dB at 40kHz. EQ Out.
- Noise: -82dBu at all line gain settings (22Hz to 22kHz bandwidth)
- EIN: Better than -125dBu @ 60dB gain.
Dimensions
- Width: 480mm (19 inches)
- Height: 88mm (3.5 inches)
- Depth: 356mm (14 inches)
- Approx. Weight: 10kg (22 pounds)
